waveshare 5inch DSI LCD Capacitive Touch Display for Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+/ CM 3/3+, 800×480 TFT Screen LCD, Refresh Rate up to 60Hz. Support Ubuntu/Kali, Win 10 IoT
4.5 (104 items)
Limited Time Sale$228.03 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211053863 | Release Date | 2026/04/04 | List Price | $152.02 | Model Number | 211053863 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

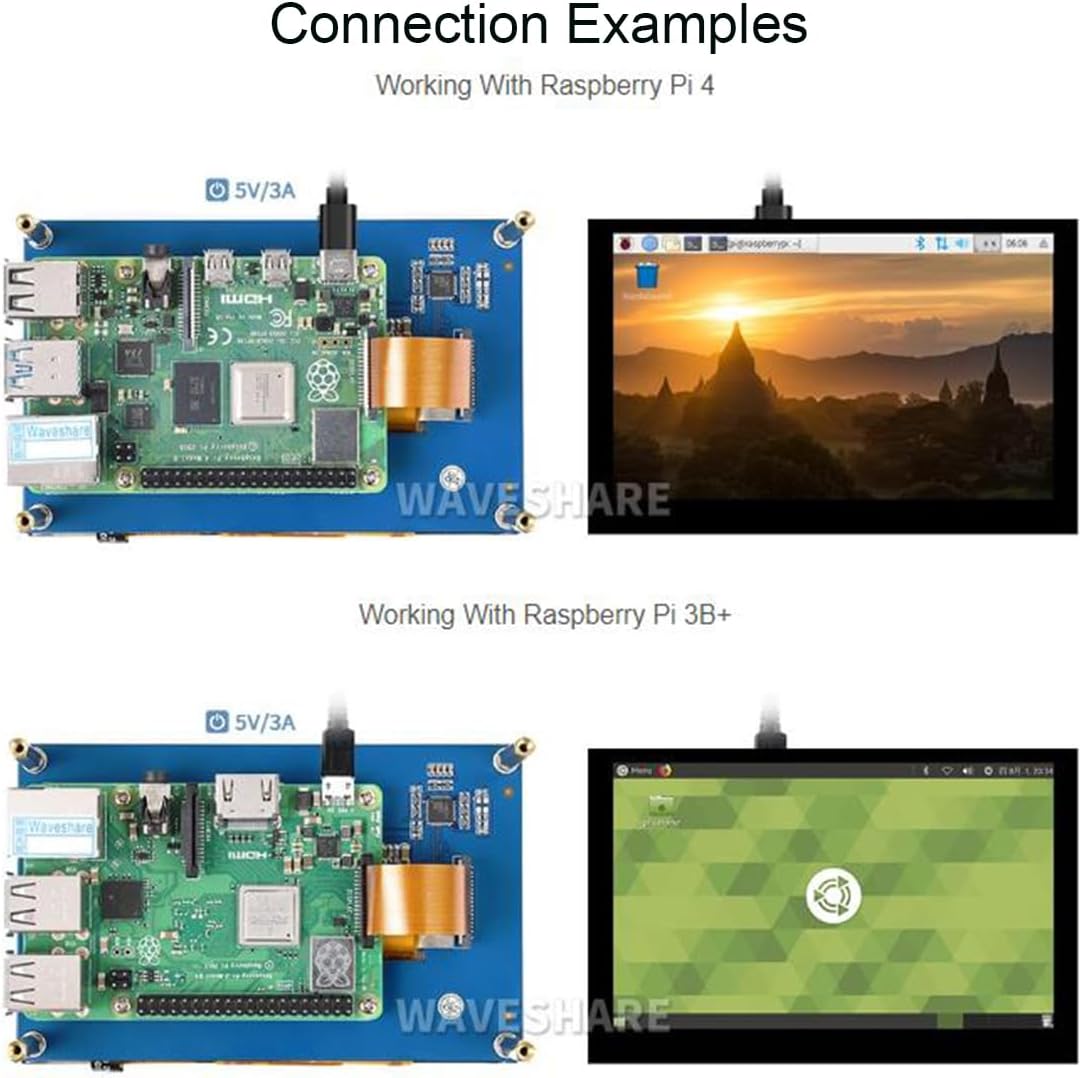

5inch Capacitive Touch Display for Raspberry Pi, 800 × 480, TFT Wide Angle, MIPI DSI Interface. Features 1) 5inch TFT screen. 800x480 hardware resolution 2) Capacitive touch panel, support 5-point touch 3) Supports Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4. Note: Another adapter board is required for CM3/3+/4 4) DSI interface, refresh rate up to 60Hz. 5) Supports Raspbian/Ubuntu/Kali and WIN 10 IoT, driver-free. Hardware connection Using the FFC cable, connect the 5inch DSI LCD to the DSI port of the Raspberry Pi. For easy use, you can fix the Raspberry Pi on the backside of the 5inch DSI LCD by screws. Software setting Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems for Raspberry Pi. 1) Download image from the Raspberry Pi website. 2) Download the compressed file to the PC, and unzip it to get the .img file. 3) Connect the TF card to the PC, use SDFormatter software to format the TF card. 4) Open the Win32DiskImager software, select the system image downloaded in step 2, and click ‘Write’ to write the system image. 5) After the programming is completed, open the config.txt file in the root directory of the TF card, add the following code at the end of config.txt, save and eject the TF card safely. 6) Power on the Raspberry Pi and wait for a few seconds until the LCD displays normally. And the touch function can also work after the system starts. More Online Tutorial : n9.cl/vjp54 Package Content 5inch DSI LCD x1 FPC 15PIN 1.0 pitch 50mm (opposite sides) x1 Screws pack x1
- 【5inch DSI LCD 】5inch Capacitive Touch Display for Raspberry Pi, DSI Interface TFT screen. 800x480 hardware resolution
- 【DSI interface】 refresh rate up to 60Hz.
- 【Capacitive touch panel】 Support 5-point touch
- 【CSupports Pi 4B/3B+/3A+/3B/2B/B+/A+,Compute Module 3/3+】 Note:* CM3/3+ requires extra adapter board
- 【Supports Raspbian/Ubuntu/Kali and WIN 10 IoT 】 Driver-free.
| Brand | waveshare |
|---|---|
| Color | Default |
| Shape | Rectangular |
| Voltage | 5 Volts |
| Resolution | 800 x 480 |
| Pixel Pitch | 15.875 |
| Screen Size | 5 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | Waveshare |
| Model Number | 915f0f1b-1824-4416-a406-53b808026013 |
| Refresh Rate | 60 Hz |
| Mounting Type | Wall Mount |
| Screen Finish | Glossy |
| Warranty Type | Manufacturer Warranty |
| Contrast Ratio | 2000:1 |
| Has Color Screen | Yes |
| Native Resolution | 800 x 480 |
| Compatible Devices | Raspberry Pi, Desktop, Laptop |
| Display Technology | LCD |
| Additional Features | Touchscreen |
| Hardware Connectivity | USB |
| Connectivity Technology | USB |
| Specific Uses For Product | Business, Desktop, Gaming, Photo Video Editing, Programming/Coding, Surveillance |
| Display Resolution Maximum | 800x480 |
| Total Number of HDMI Ports | 1 |
