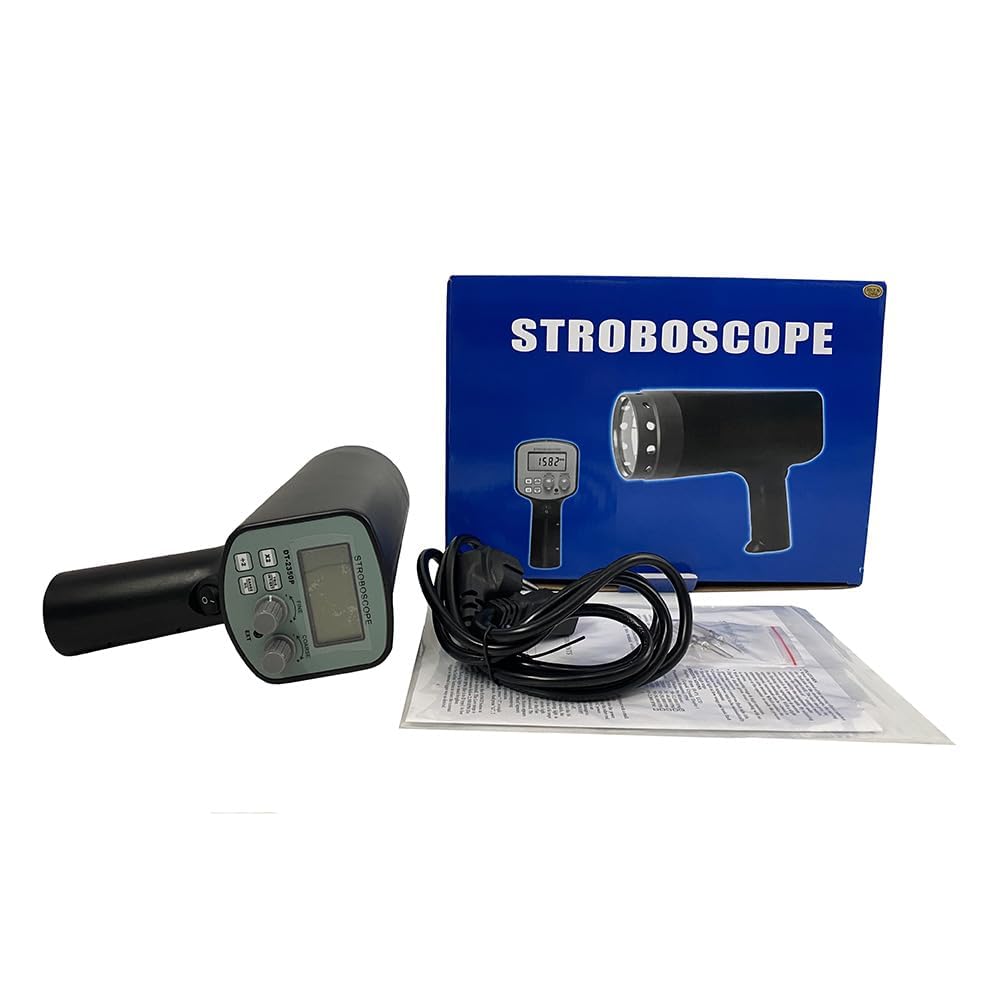

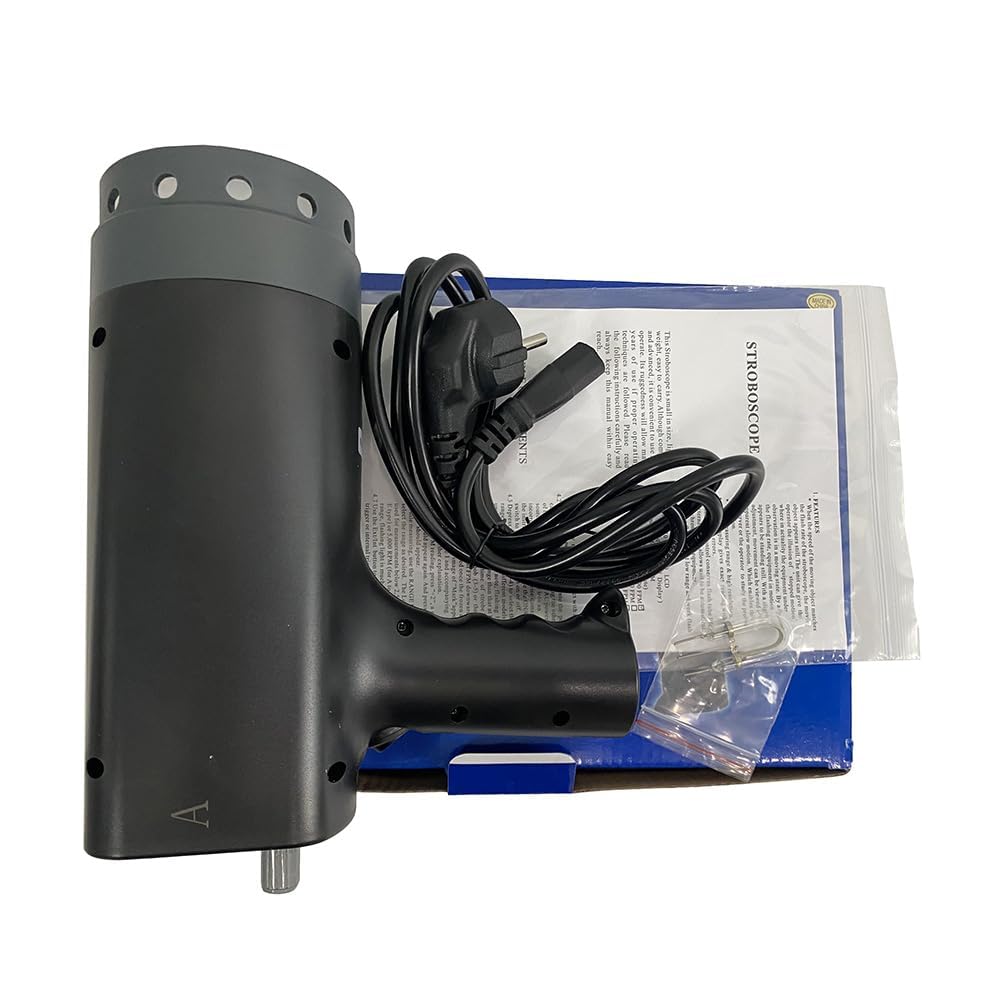

Stroboscope Handheld Stroboscope with Measurement Range 50~40,000FPM Auto Stop Flash Function for Rotational Speed and Frequency of Motion of The Object to be Detected

The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks. Feature * Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution. * Automatic stop flashing to save electricity and improve flash tube lifetime. * Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment. * Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern. * Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object. Technical Specifications Display : LCD Range : :50~40,000FPM Resolution :0.1 FPM(50~999.9 FPM) ; 1 FPM(Over 1000 FPM) Accuracy :±(0.05%n+1d) Sampling Time: 0.3 Seconds Internal / External Triggering Conversion External Trigger Level: 3~24 V H/L Range : Flashing Light is much Brighter at Low Range than at High Range With x2 , ÷2 for Fast Check Flash Tube Life :100 Millian Times Operating Conditions: Temperature:0~40ºC , Humidity:<85%RH Dimensions :215x85x180 mm Weight :About 1000 g

• ◆ Measurement Range :50~40,000FPM; Accuracy :±(0.05%n+1d)
• ◆ Resolution :0.1 FPM(50~999.9 FPM); 1 FPM(Over 1000 FPM);
• ◆ Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
• ◆ Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
• ◆ The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks.
