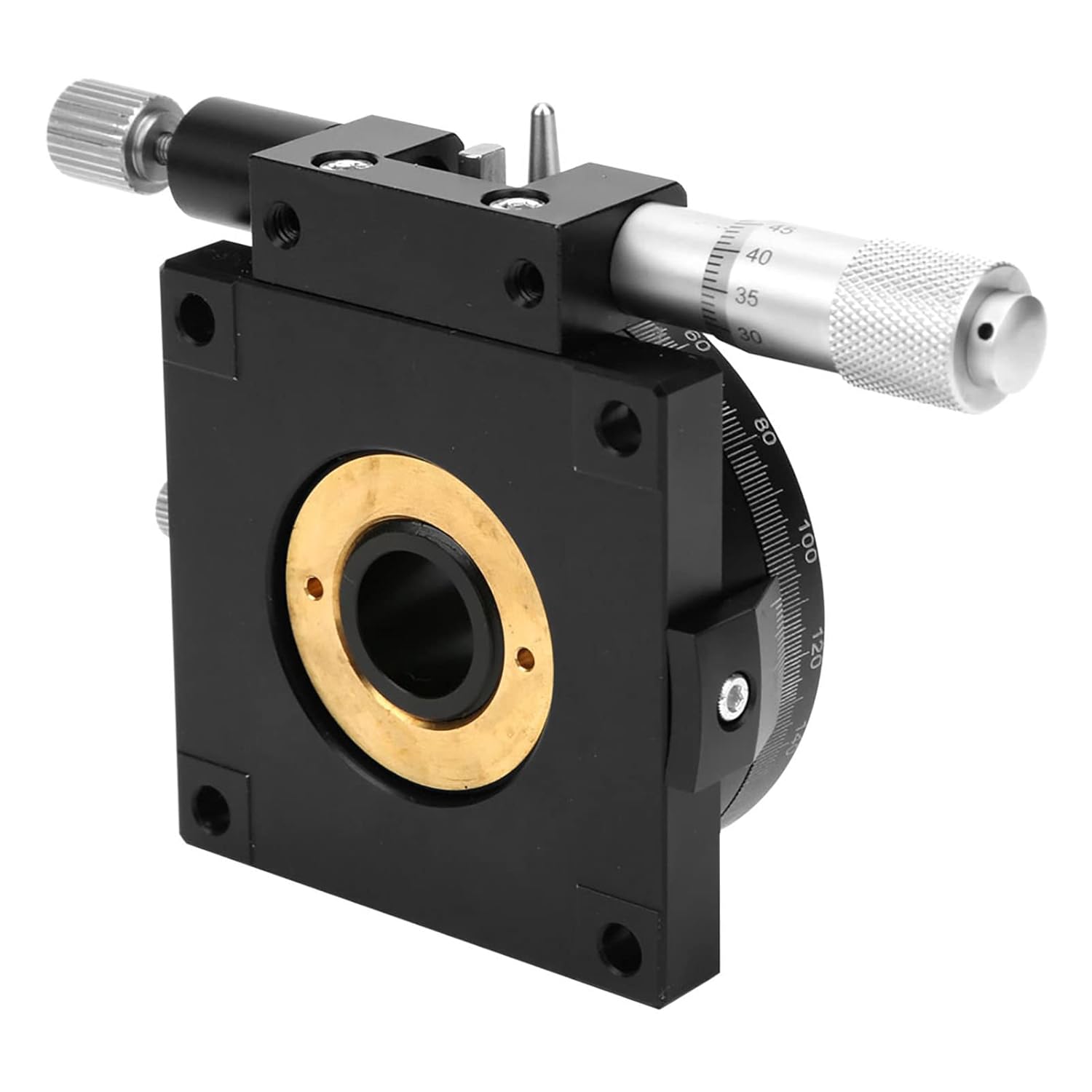

RSP60 L R Axis Linear Stage Sliding Table, Manually Adjustable Micrometer Platform with Aluminum Alloy Body, for Production Machinery Testing Equipment

The RSP60-L R Axis Linear Stage Sliding Table is a manually adjustable precision tool designed for diverse tasks like production machinery operation, testing equipment use, and optical experimental measurement. Its same density aluminum alloy body with hard black anodized surface ensures durability, while high-strength bearing steel rails and electroplated guide rails enhance stability and adaptability to complex environments. With micrometer drive enabling 360° coarse rotation and ±5° fine adjustment, plus a 60mm diameter and 29.4N (3kgf) load capacity, it meets accuracy and load needs of fine-tuning displacement, accuracy positioning, and quantitative movement.Item Type: Linear Stage Sliding TableModel: RSP60-LCoarse Adjustment 360 Rotation, Precise Adjustment of ±5°Material: Aluminum Alloy (black anodized surface)Table Diameter φ: Approx. 60mm / 2.4inDrive Mode: MicrometerDirection of Movement: RLoad: 29.4N（3kgf）Vernier Minimum Reading: Vernier Scale 0.1mmConcentricity: 0.02umParallelism: 0.02mScope of Application: Production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, accuracy positioning, quantitative movement, etc.Package List：1 x Linear Stage Sliding Table

• Same Density Aluminum Alloy Body Sliding Table：The main body of this R axis sliding table is made of same density aluminum alloy sheet, with a hard black anodized surface. This material selection ensures the table maintains consistent structure and performance, while the anodized surface allows it to withstand regular use—avoiding scratches and damage from accidental falls.
• 360° Coarse & ±5° Fine Adjustment Micrometer Platform：Driven manually by a micrometer, the sliding table enables 360 - degree coarse rotation and ±5° precise adjustment on the R axis. This dual - adjustment design meets the needs of tasks requiring different precision levels: coarse adjustment for quick position alignment and fine adjustment for exact positioning.
• High - Strength Bearing Steel Rail Sliding Table：The sliding table adopts high - strength bearing steel rails, which enhance overall working stability during operation. The steel material also has strong wear resistance, reducing the impact of frequent use on rail performance and extending the table's service life. The rails’ robust structure ensures smooth movement without jitter, providing reliable support for tasks that demand consistent and stable sliding.
• Electroplated Guide Rail Linear Stage：The surface of the sliding table’s guide rail undergoes electroplating processing. This treatment allows the guide rail to work normally in complex environments, avoiding issues that might affect performance. The electroplated surface also simplifies daily maintenance, as it is easy to clean and keeps the guide rail in good condition for a long time, ensuring the sliding table’s consistent functionality.
• Multi - Application Accuracy Positioning Table：This linear stage sliding table is suitable for production machinery, testing equipment, optical experimental measurement, fine - tuning displacement, accuracy positioning, and quantitative movement. Its versatile design adapts to various scenarios—from industrial production lines to laboratory research settings.
