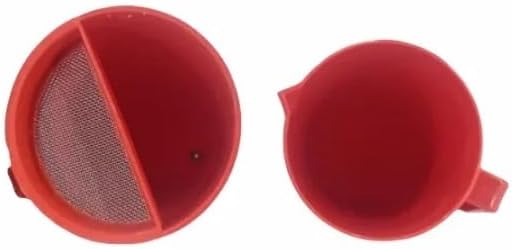

Plastic Marsh Funnel Viscometer Mud Petroleum Drilling Fluid Stop Watch 946ml Test Detector Set

FunnelApplicationThe funnel viscometer is a daily on-site device used to measure the relative viscosity of mud (compared water). It has simple structure, convenient operation, and reflects effective under certain conditions. The higher (in seconds), apparent mud. Generally, flows out in laminar or structural state, which reasonably changes consistency.FeaturesBoth gel strength are related measurement fluid flow properties. been for many years drilling fluid. standard value that time 946ml distilled water at 20 ± 2 26 5S. All Martensian viscometers made sturdy durable materials, with precision machined brass orifices ensure accurate measurement.Technical parameter(1) funnel: diameter upper end cone 152mm, lower 4.76mm, length 50.8mm. 305mm, total 356mm.(2) sieve mesh size 1.6mm ( tthat 12 mesh).(3) Filter capacity below 1500ml.(4) Standard measuring cup 946ml.Method using Marsh viscometer:(1) Hold an upright position your hand, place filter screen opening funnel, block outlet guide tube index finger.(2) Take sample tested inject it into through until horizontal surface reaches bottom screen. (At this time, happens be 1500ml)(3) Prepare stopwatch, then release finger press stopwatch record full. Record number seconds when out, an

• (3) The sieve mesh size is 1.6mm ( tthat is 12 mesh)..(4) Filter capacity below 1500ml..(5) Standard measuring cup 946ml.
• (1) The standard value of Marsh Funnel Viscometer is the time for distilled water to flow out from 946ml at 20 ± 2 ℃ is 26 ± 5S. They all made of sturdy and durable materials, with precision machined brass orifices to ensure accurate measurement.
• (2) Martensian funnel: The diameter of the upper end of the cone is 152mm, and the diameter of the lower end of the cone is 4.76mm, with a length of 50.8mm. The length of the cone is 305mm, and the total length of the funnel is 356mm.
