Orange Juice LP156WF6 eDP LCD Panel Control Board Driver Kit 1080P VGA HDMI Video 3.5mm Audio Input
4.3 (72 items)
Limited Time Sale$20.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209107435 | Release Date | 2026/03/29 | List Price | $13.60 | Model Number | 209107435 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

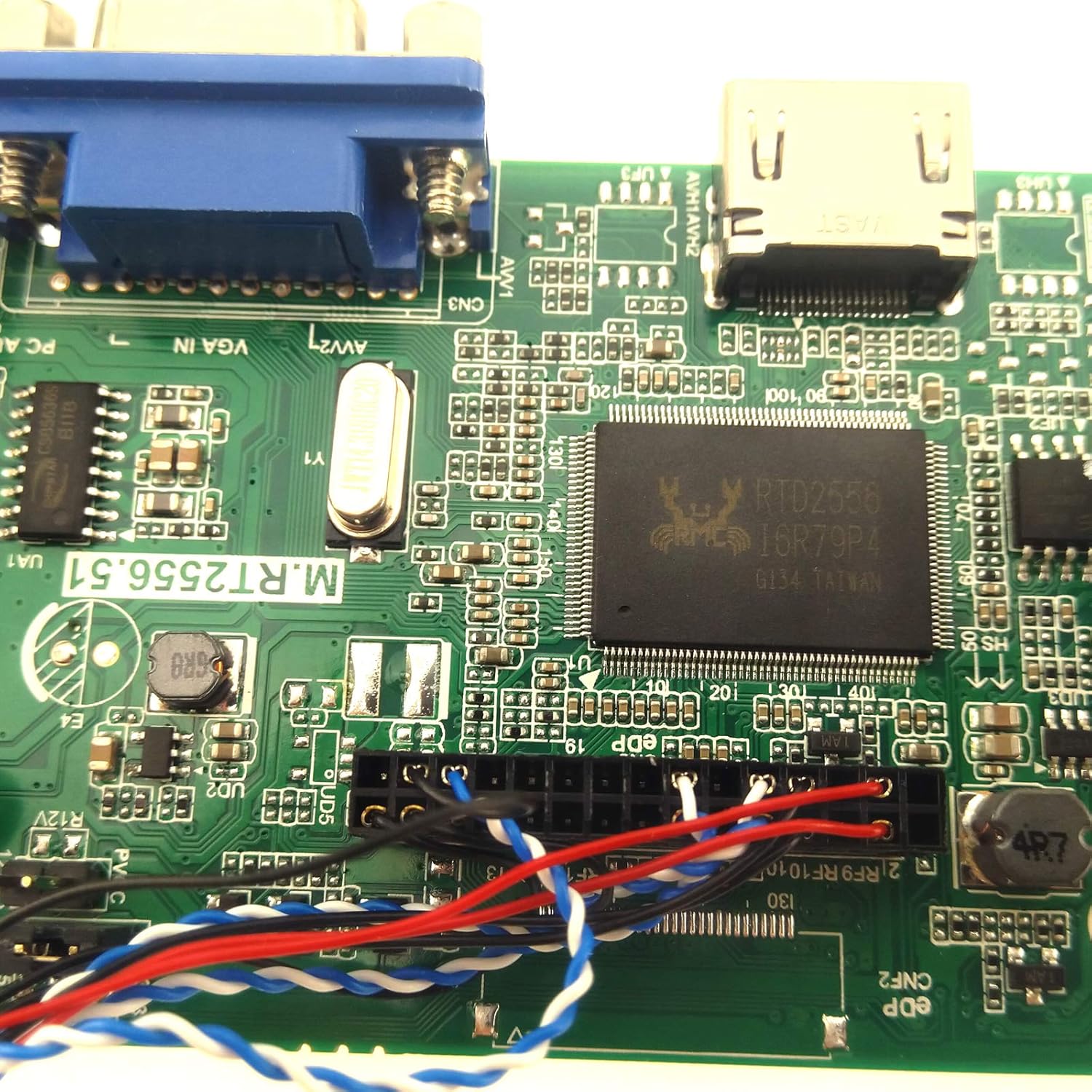

This is eDP controller borad for LP156WF6 series LCD panel (eg LP156WF6-SPB1, LP156WF6-SPK3, LP156WF6-SPP1... etc). It is plug and play, supports brightness control, fast response time, and low working temperature. Must Read Important Note: - This controller is for LP156WF6 series eDP LCD panel only, NOT for other models. - This driver borad use 12V 2A (suggest 3A) power supply, which is NOT included. DC connector is 5.5 x 2.1mm, also support 5.5 x 2.5mm. - Finish all cables connection and connect power supply at last. - If you very concern about resolution setting, please think it twice before order. - If you are not specialized in electronics or have doubts in operation, please CONTACT US, we are not responsible for wrong operation. Packing List (bulk pack): - 1 x Controller board - 1 x LVDS cable - 1 x 5-keys menu Features： - Support resolution up to 1920 x 1080 (1080P) - Support eDP voltage 3.3V only, voltage is FIXED - VGA and HDMI video input, 3.5mm audio input, 4 pin speaker header (speaker not included) - Support control of contrast, brightness, digital volume... etc - Board size: 10.6 x 5.5cm (4.17 x 2.16 inch)
- LCD controller borad driver kit for LP156WF6 series 15.6" 30-pin eDP LCD panel, NOT for other LCD panel model
- Board size 4.17 x 2.16 inch, HDMI and VGA video input, resolution up to 1080P (1920 x 1080)
- One 3.5mm audio iutput, 4-pin header audio output for connection to external speaker (not included)
- LP156WF6-SPA1, LP156WF6-SPB1, LP156WF6-SPB2, LP156WF6-SPB4, LP156WF6-SPB5, LP156WF6-SPB6, LP156WF6-SPB7, LP156WF6-SPC1, LP156WF6-SPD1, LP156WF6-SPF1, LP156WF6-SPH1, LP156WF6-SPH2, LP156WF6-SPH3
- LP156WF6-SPJ1, LP156WF6-SPJ2, LP156WF6-SPK1, LP156WF6-SPK2, LP156WF6-SPK3, LP156WF6-SPK6, LP156WF6-SPL1, LP156WF6-SPL2, LP156WF6-SPM1, LP156WF6-SPM2, LP156WF6-SPM3, LP156WF6-SPN1, LP156WF6-SPP1, LP156WF6-SPP2
| UPC | 782500024051 |
|---|---|
| Brand | Orange Juice |
| Color | black |
| Finish | Matte |
| Unit Count | 1 Count |
| Item Weight | 0.06 Kilograms |
| Manufacturer | Orange Juice Technology |
| Model Number | LP156WF6 |
| Input Voltage | 12 Volts |
| Warranty Type | Limited |
| Connector Type | Auxiliary, HDMI, VGA |
| Current Rating | 2 Amps |
| Number of Items | 1 |
| Number of Ports | 3 |
| Power Plug Type | No Plug |
| Package Quantity | 1 |
| Compatible Devices | Speaker |
| Specific Uses For Product | Speaker |
| External Testing Certification | Não aplicável |
