Optocoupler Tester for 4-Pin Optocouplers – USB-C Interface, Online Detection Tool with Indicator Light & Flashlight Function, PCB-Based Module for Repair and(4th)

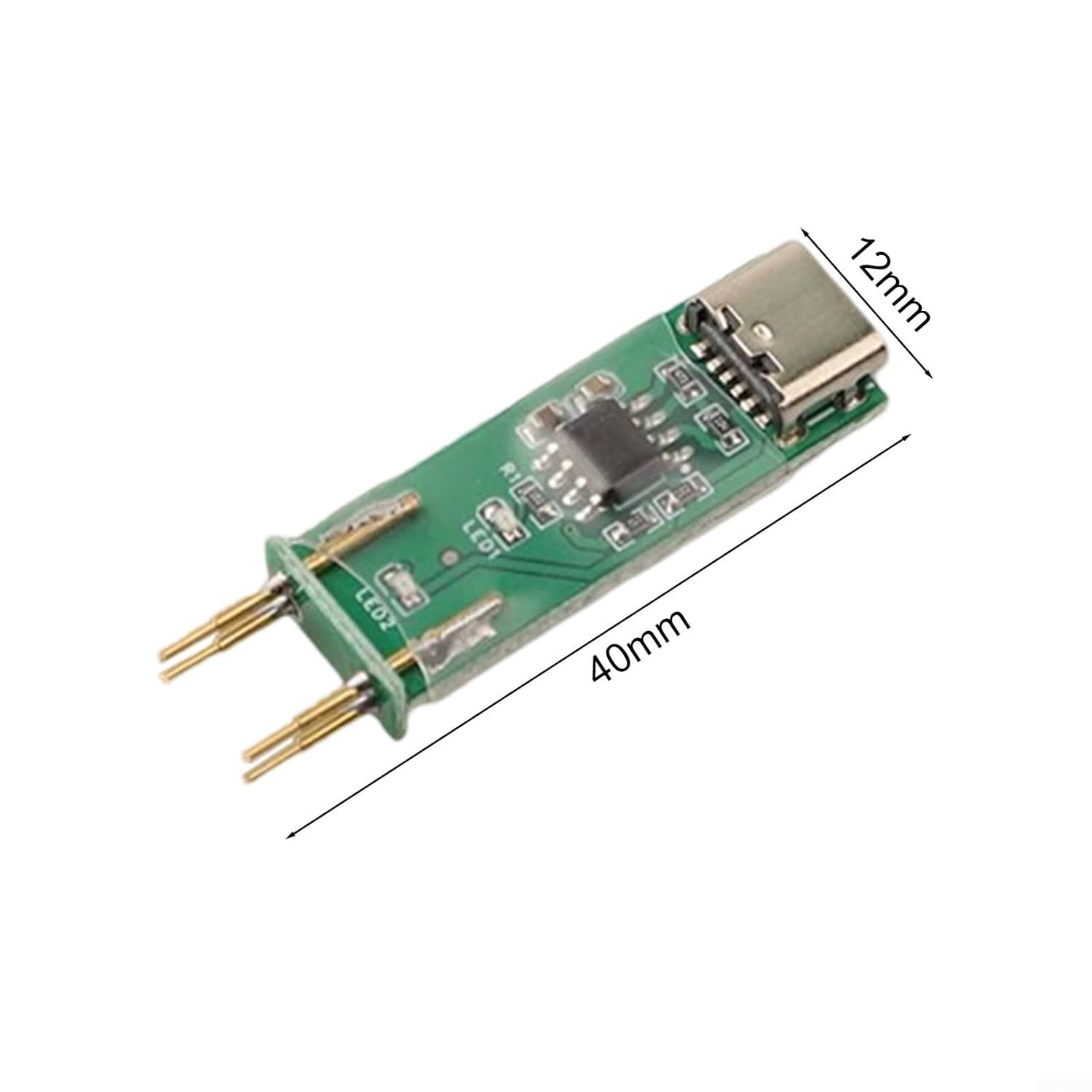

Product description Features:1. Test to confirm that the board under test is turned off and the electrolytic capacitors on the motherboard are fully discharged. It is strictly forbidden to test when the motherboard is powered on.2. Confirm the optocoupler PIN1 (the pin with a small dot on the test board also has a corresponding mark 1 pin)3. Connect the optocoupler test board to the USB power cord, and test the optocoupler with the test board probe point. If the light in the optocoupler test board keeps flashing, it means that the optocoupler is good (the light brightness may be different from the optocoupler). As long as it flashes, it means that the optocoupler is good)4. Measure to for ensure that the optocoupler test board has good with the tested optocoupler5. If the indicator light is always on or off, remove the optocoupler from the circuit board and insert it into the optocoupler seat of the breadboard to reconfirm the test results6. Applicable to 4-pin optocouplers, other types of optocouplers are temporarily not applicableSpecifications:Part name:Optocoupler TesterColor: greenMaterial: PCB + electronic componentsSize: as shown in the figureDifferentiation: 3rd generation, 4th generation, 5th generation, 6th generationDifference:1: The interface of the 3rd generation is USB interface, no indicator light when connected to power, indicator light when testing, need to be plugged in to use2: 4th generation is type-c interface, there is an indicator light when plugged in, need to be plugged in to use:3: 5th generation is type-c interface, there is an indicator light when plugged in, upgraded on the basis of 4th generation, four-pin plug-in optocoupler test and patch test, need to be plugged in to use4: 6th generation is type-c interface, there is an indicator light when plugged in, four-pin plug-in optocoupler test and patch test, with flashlight lighting, with battery for chargingPackage Contents:1 x Optocoupler TesterOnly the above package contents, not including other products. Manufacturer Contact Information no

• [COMPREHENSIVE TESTING TOOL] This Optocoupler Tester is designed for precise testing of 4-pin optocouplers, ensuring accurate detection and reliable performance during your electronic repairs.
• [USER-FRIENDLY DESIGN] The module features a simple connection via USB or TYPE-Cs interface, making it easy to in and start testing without complicated setups.
• [VISUAL INDICATOR] The built-in indicator light provides immediate ; if it flashes, the optocoupler is functioning properly, allowing for quick diagnostics.
• [SAFE USAGE GUIDELINES] To safety, always test with the board powered off and confirm that capacitors are discharged before use.
• [SIZING REMINDER] Please refer to your specific optocoupler specifications for proper compatibility before testing.
