OMAX 40X-2500X Binocular Compound LED Microscope with 1.3MP Digital Camera
4.5 (79 items)
Limited Time Sale$225.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211703241 | Release Date | 2026/04/04 | List Price | $150.40 | Model Number | 211703241 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

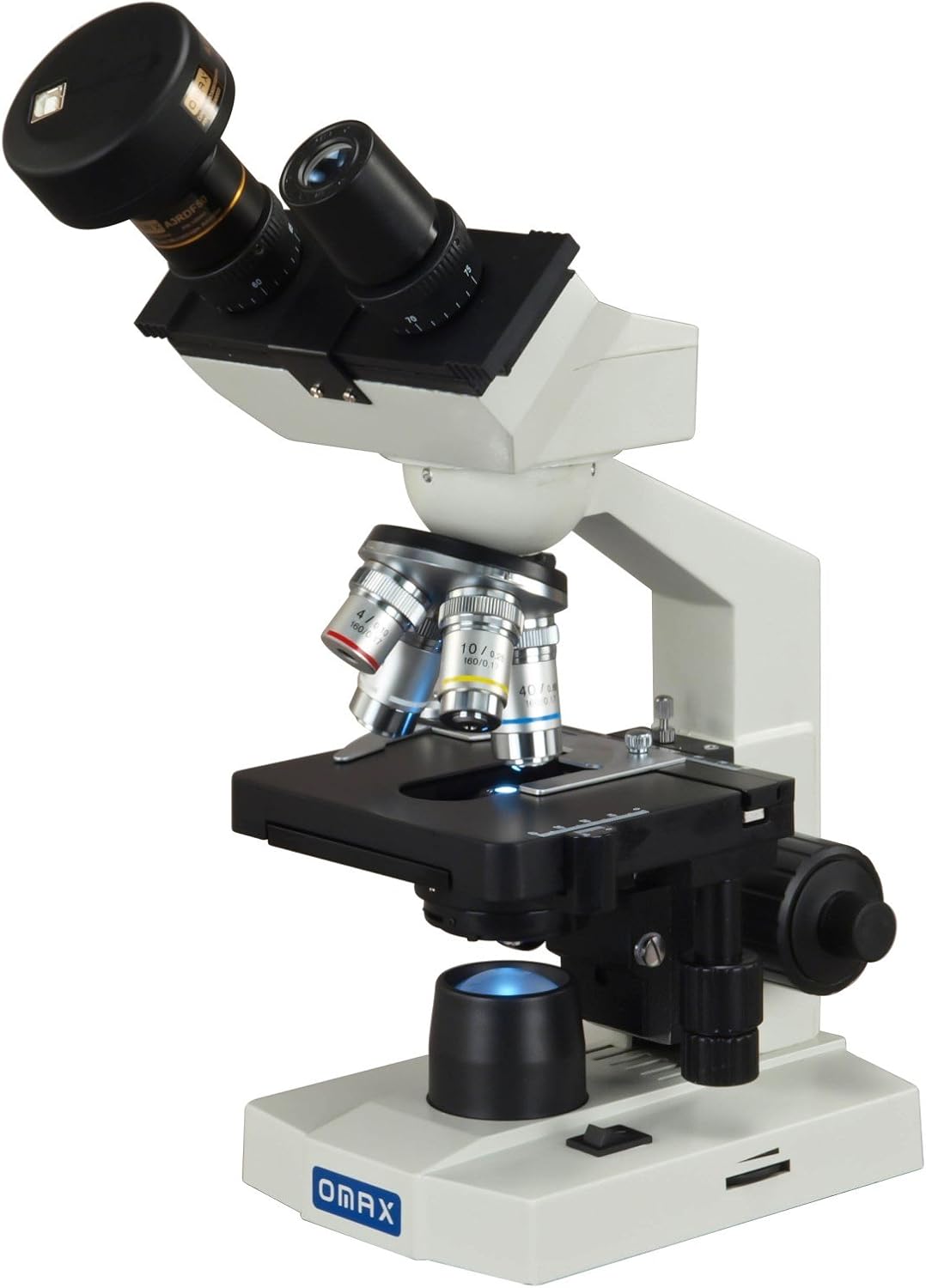

This is a digital biological binocular compound microscope that includes a digital imaging system. The digital microscopy comes with a 45° inclined 360° swiveling binocular sliding viewing head, two pairs of widefield eyepieces, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing, NA 1.25 Abbe condenser and variable intensity LED transmitted illumination system. It offers six levels of magnification power: 40X-100X-250X-400X-1000X-2500X. The 1.3MP (1280x1024 pixels) USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. It is easy to mount a darkfield condenser to switch a brightfield microscope to a darkfield microscope. This type of digital compound microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.
- Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eyetubes
- Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eyetubes
- Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eyetubes
- Nosepiece: revolving quadruple; Stage: mechanical double layer size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator: LED light, intensity adjustable
- Focus adjustment: Coaxial coarse and fine knobs on both sides; All metal mechanical components; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved) - Input: 100-240VAC, 50/60Hz, 0.5A Max - Output: DC7.5V, 1000mA
- Digital camera: - true color 1280x1024 pixels (1.3MP) - 0.37X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 15fps at 1280x1024, 26fps at 640x512, 50fps at 320x256 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
- 5-year warranty against manufacturing defects
| UPC | 670541476178 |
|---|---|
| Brand | OMAX |
| Voltage | 240 Volts |
| Model Name | M82EZ-C13U |
| Item Weight | 8 Pounds |
| Manufacturer | OMAX |
| Model Number | M82EZ-C13U |
| Power Source | Corded Electric |
| Light Source Type | LED |
| Enclosure Material | Metal |
| Real Angle Of View | 45 Degrees |
| Magnification Maximum | 2500 x |
| Manufacturer Part Number | M82EZ-C13U |
| Objective Lens Description | Achromatic |
