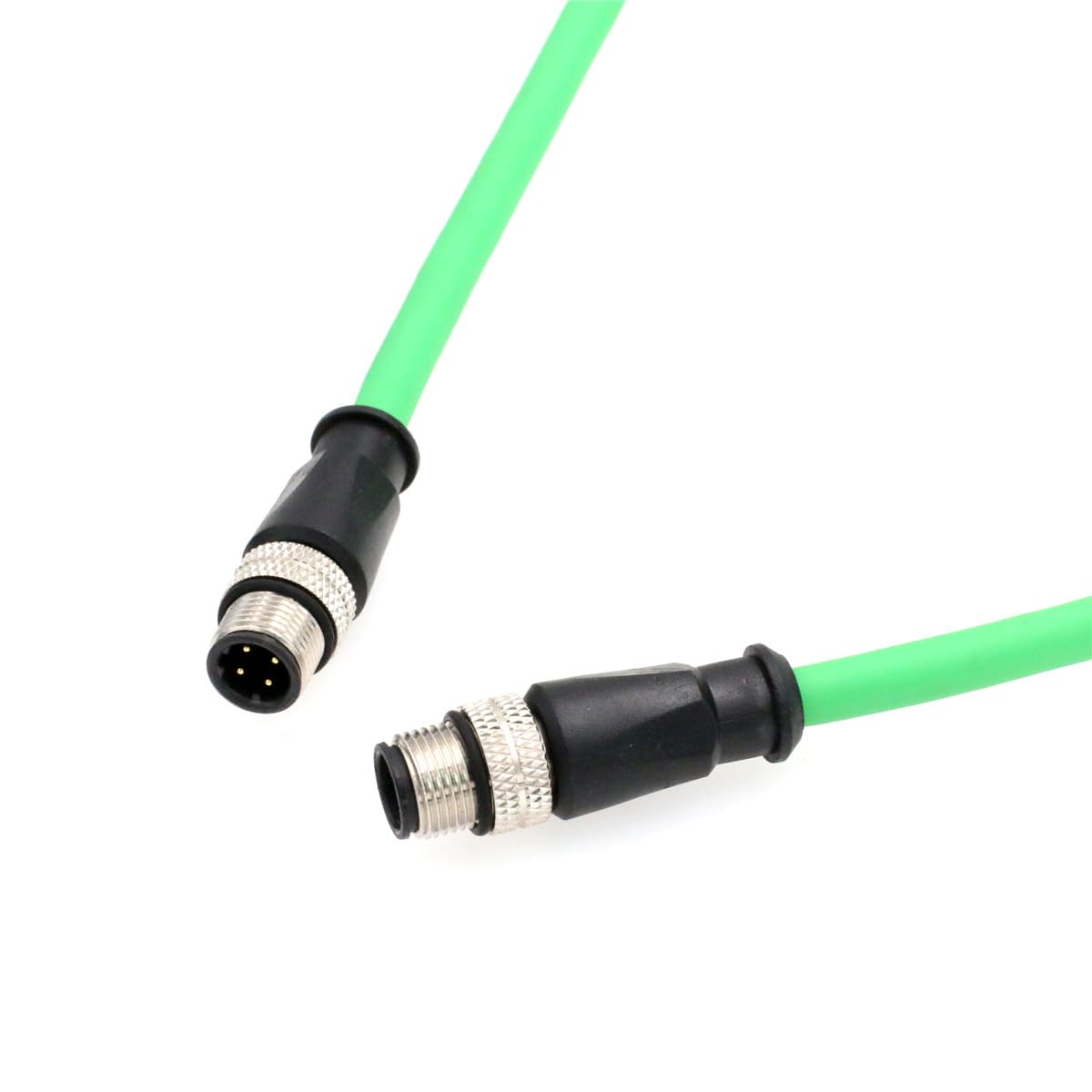

Network Profinet Ethernet Camera M12 4 Pin D Code Male to M12 4 Pin D-Code Male Cable for Barcode Reader Sensor Camera Shielded Flexible 8M
4.6 (98 items)
Limited Time Sale$28.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215114843 | Release Date | 2026/04/12 | List Price | $19.20 | Model Number | 215114843 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Built with high-flexible shielded cable and using double IP68 M12 connectors, these assemblies are as robust as they come. They are designed to exceed category standards to ensure data and power throughput even in harsh industrial or weather environments.
- Ethernet M12 D-coded 4 pin male to M12 D-coded 4 pin male connector network data power CAT5e cable, 8 meter / 26.2 feet
- M12 Ethernet cable for Baumer encoder sensor camera, for SICK sensor, for Omron machine vision system, for Datalogic barcode scanner Matrix, for Keyence IV IV2 series sensor / SR-1000 2000 700 750 barcode reader to network communication application PLC, switches, profinet, rated at 30V-250V 4A
- M12 cable is widely used in sensor, machine vision image sensor camera system, barcode scanner reader, actuator, encoder, industrial Ethernet, network, outdoor LED display, rail transit CCTV control system, industrial automation control, servo, motor, robot, fieldbus, EtherNet/IP, profinet, EtherCAT, switches, router, PC host computers, PLC, process control, PoE injector power
- The cable can effectively avoid electromagnetic interference signals, and can transmit data high speed and stability, up to 100 Mbit/s. Cable with multi-layer aluminum foil braid shield, cotton wire filling, twisted pair 24AWG PVC green jacket. The cable is resistant to abrasion, oil, dirt, oxidation, bending, heat, flame retardant. It is highly flexible, stretch resistant, sun UV resistant, waterproof dust-proof IP67 and can be used in drag chains and harsh industrial environments
- Connector features: Solid and smooth connection. Shielded, screw locking plug with strain relief for durable stable use in harsh industrial application. Oxygen-free copper gold-plated contacts. It is vibration-resistant. Metal housing (with shielding) can be shielded from EMI / RFI interference in all directions, and meet the IP67 level of dust and water resistance standards
| Color | Green |
|---|---|
| Gauge | 24.0 |
| Model | 7405216826612 |
| Brand Name | HangTon |
| Cable Type | Ethernet |
| Item Shape | Round |
| Unit Count | 1.0 Count |
| Manufacturer | HangTon Connect |
| Connector Type | M12 4 Pin D-coded to M12 4 Pin D-coded |
| Number of Pins | 4 |
| Maximum Current | 4 Amps |
| Maximum Voltage | 250 Volts |
| Number of Items | 1 |
| Connector Gender | Male-to-Male |
| Specification Met | CE |
| Compatible Devices | For Vision Sensor Encoder Ethernet Profinet Network |
| Data Transfer Rate | 100 Megabits Per Second |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Warranty Description | 1 Year Manufacturer |
| Connectivity Technology | Ethernet |
| Ethernet Cable Category | Cat 5e |
| Other Special Features of the Product | M12 profinet cable 4-pin |
