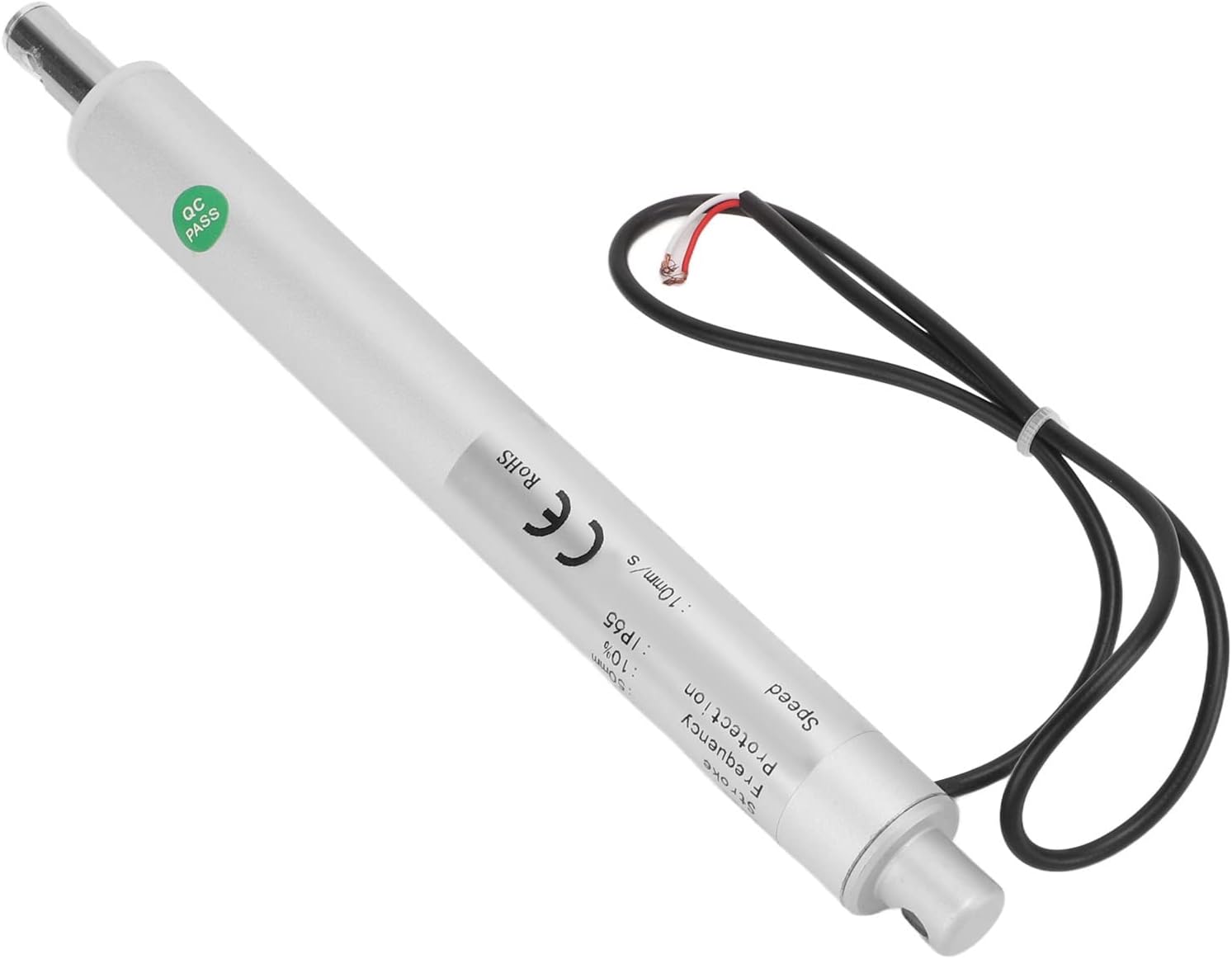

Micro Linear Actuator DC Electric Mini Pen Type 50mm Stroke with Internal Limit Switch Linear Motion Parts| | - - (Voltage(V): 24V)

Micro Linear Actuator DC Electric Mini Pen Type 50mm Stroke with Internal Limit Switch Features: 1. HIGH NO LOAD SPEED: No load speed of micro linear actuator for 10mm per sec, come with 5mm diameter mounting holes2. BUILT IN LIMIT SWITCH: Internal limit switch, the actuator automatically stops when reaches the end point, provide great convenience3. WEAR RESISTANT STRUCTURE: The protection level can IP65, and the planetary gear reduction transmission structure is used to greatly improve wear resistance and durability4. WIDE APPLICABLE: Suitable for electric bed, electric lift bed, electric lift table, electric reclining chair and other electric actuator equipment5. CORROSION RESISTANT ALUMINUM ALLOY: Adopt excellent aluminum alloy material, light weight, possess good strength and good corrosion resistance Specifications: Item Type: Micro Linear ActuatorMaterial: Aluminum alloyMaximum Force: 100NStroke: Approx. 50mm / 1.97inNo Load Speed: 10mm/sLoad Speed: 6mm/sProtection Class: IP65Working Cycle: 10%, work for 2 minutes, stop for 18 minutesApplicable To: Electric bed, electric lift bed, electric lift table, electric reclining chair and other electric actuator equipmentMounting Hole Diameter: 5mm / 0.2in Package List: 1 x Push Rod 2 x Bracket 3. We confirmed order addresses. Your order address MUST MATCH your address.4. The images shown are not the actual item and are for your reference .5. SERVICE is provided by the carrier and excludes weekends and holidays. s may vary, particularly during the holiday season.7. Due to stock status and time differences, we will choose to your item from our first available warehouse for . 8. We seller are not in charge of import duty, buyer is responsible for that. Any dispute caused by this is unreasonable.

• Voltage(V): 24V
• 1. HIGH NO LOAD SPEED: No load speed of micro linear actuator for 10mm per sec, come with 5mm diameter mounting holes
• 2. BUILT IN LIMIT SWITCH: Internal limit switch, the actuator automatically stops when reaches the end point, provide great convenience
• 3. WEAR RESISTANT STRUCTURE: The protection level can IP65, and the planetary gear reduction transmission structure is used to greatly improve wear resistance and durability
• 4. WIDE APPLICABLE: Suitable for electric bed, electric lift bed, electric lift table, electric reclining chair and other electric actuator equipment
