LS Valve Spring Compressor Tool Compatible with LSX 4.8 5.3 5.7 6.0 6.2 LS1 LS2 LS3

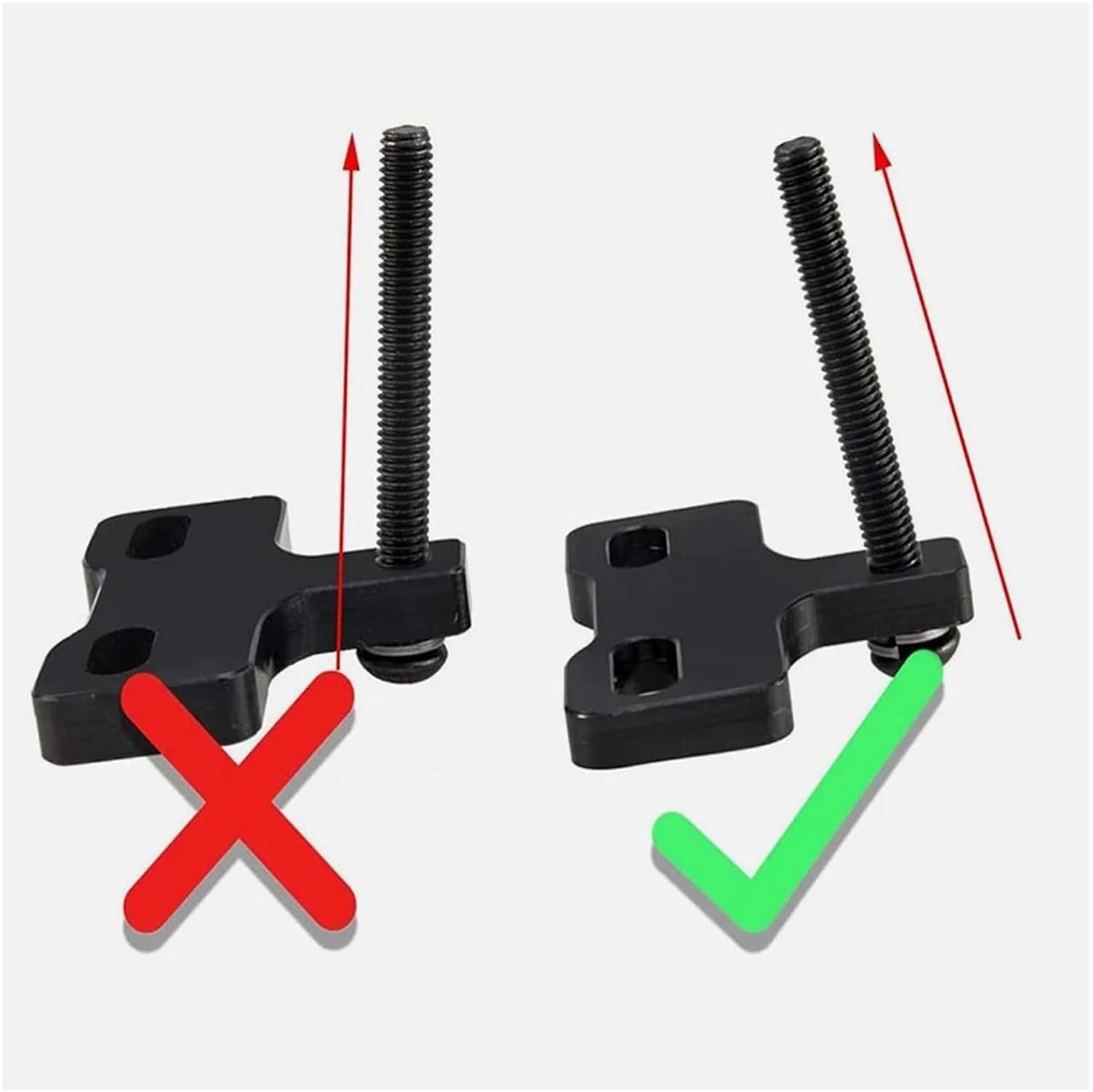

LS Valve Spring Compressor Tool Compatible With LSX 4.8 5.3 5.7 6.0 6.2 LS1 LS2 LS3Remove the Valve Covers, Remove the Rocker arms and Rocker rails.Place the Bottom Aluminum plate on the head where the rocker bolts mounted and place the middle section on top that has the stud and mount it to the head with the 2 supplied bolts make sure the tool is setting in the middle between the 2 valve springs. Hand Tighten using a ratchet and socket. Do not Over tighten you can cause damage to the head if you use a impact.Place the top over the 2 valve springs and install supplied nut. Make sure the stud has grease on it.Before tightening if you are using this on a head that is installed on the engine you will need to use a fitting with compressed air in the spark hole to keep the valves pushed close.Slowly tighten the nut down using Hand Tool Only Do not use an impact it will cause the nut to overheat and strip threads!After Compressing the springs you can remove the valve keepers using a magnet this will keep them from falling in the Head.After removing keepers you can reverse the nut and slowly let the pressure off and remove the springs.Install the springs using the same procedure. Make sure when reinstalling the valve keepers that you get them in place so they will hold properly before releasing the pressure.==========Welcome to our store, here not only have the products you need, but also our warm service and professional advice, looking forward to meeting you!

• Different types and models of engines require the use of appropriate timing tools.
• The timing tools should be properly stored after use.
• The timing tool must be used together with other tools, such as wrench and torque wrench.
• Engine timing tools usually need to be used in conjunction with other service tools and equipment.
• The tool is made of high strength material
