Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC
Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

flash sale iconLimited Time Sale
Until the end
02
13
50

$65.95 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $109.91
quantity

Product details

Management number 211201801 Release Date 2026/04/04 List Price $43.96 Model Number 211201801
Category
  1. Industrial & Scientific
  2. Power Transmission Products
  3. Linear Motion Products
  4. Slide Rails

Space-Saving Precision: This compact combo integrates a single-rail linear stage with an all-in-one closed-loop NEMA 23 motor (driver + encoder built-in). It delivers zero lost-step performance in tight spaces, simplifies wiring, and offers robust load capacity for precision automation projects.

  • Compact Single-Rail Stage + 3-in-1 Closed-Loop Motor: The single linear guide rail design minimizes installation footprint, ideal for space-constrained projects. The integrated 57mm closed-loop stepper (motor, driver, encoder) actively prevents lost steps, reduces heat, and eliminates external driver wiring. Combined with a precision ballscrew (e.g., SFU1605), it ensures smooth, accurate motion with high repeatability.

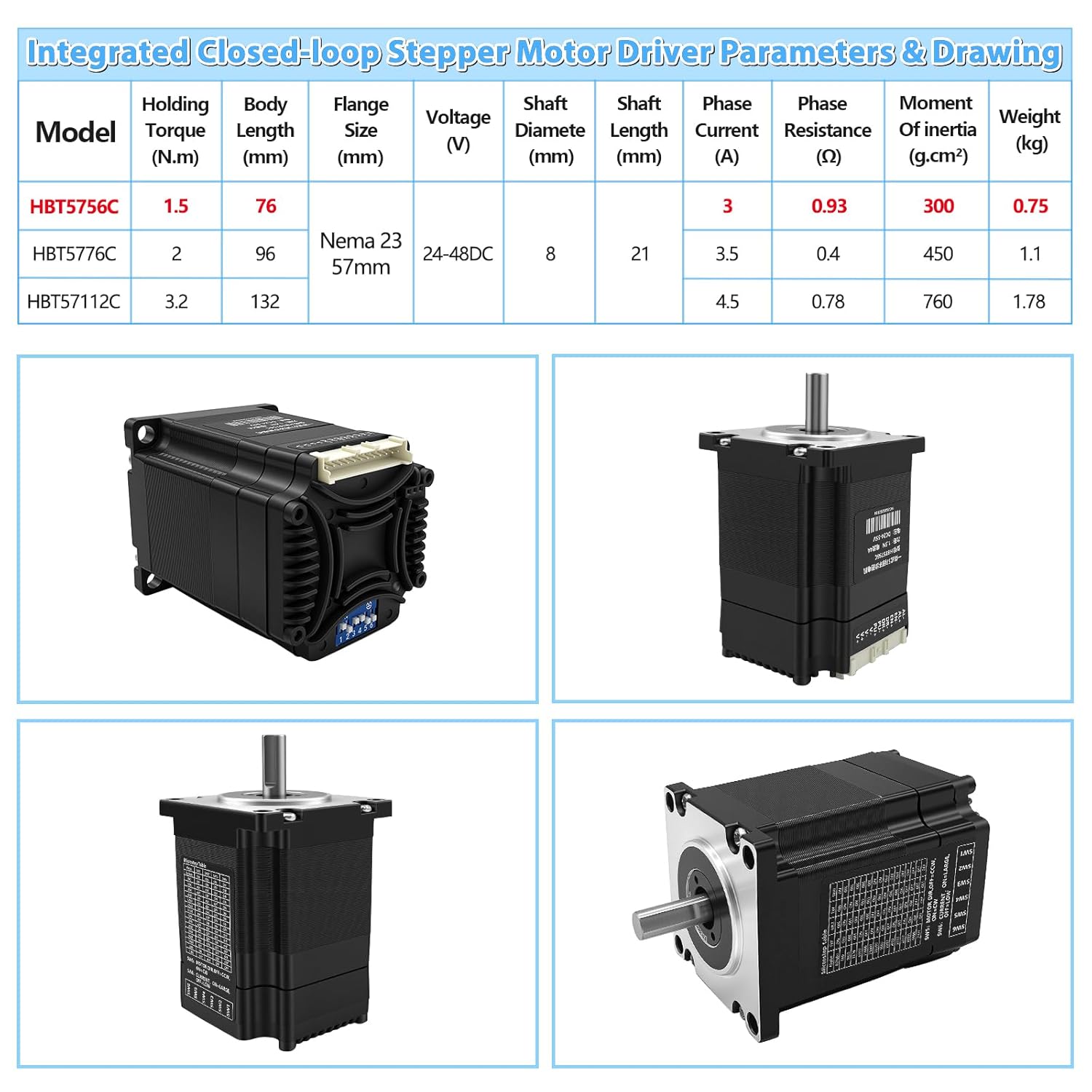

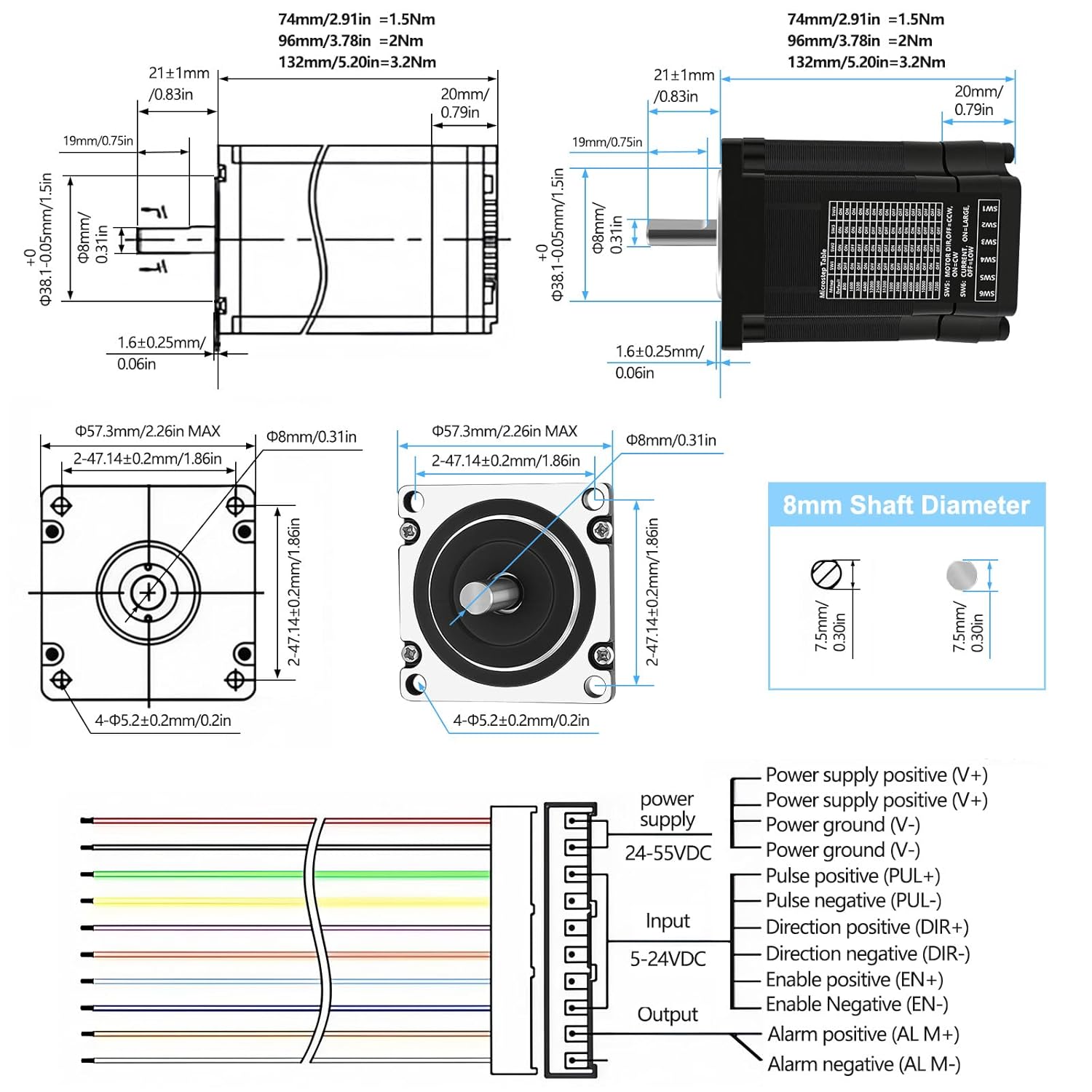

  • Motor Specifications: Holding Torque 1.5 N.m. Running with no vibration/noise and high torque, good substitution of AC/DC servo motor at low speed.Type: Hybrid; Encoder line number: 1000; Motor length: 57x57x56mm / 2.24*2.24*2.2 inch; Shaft Diameter:8mm; Total length:76mm/3 inch; Lead wire: 4pcs; Support DC Power Supply:DC20-48V; Current:4.2A.
  • NEMA23 57mm Integrated Closed-Loop Stepper Motor:Closed-loop motion, high positioning accuracy, fast response, and high speed to 1000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
  • Linear Rail Slide Stage Specifications:Slide Block-Guide Type: MGW12R, Slider Type: MGW12C. Horizontal loading capacity up to 88 pound / 40kg,vertical loading capacity up to 44lb / 20kgs.also low noise when working. Low noise. Ensure rigidity and smooth motion under stress.
  • Linear Stage:High-Speed Precision: 20 inch/s (500mm/s) Max Speed. CNC Linear Stage Motion Actuator Stroke: 8 inch / 200mm. Total length: Effective Stroke(8 inch) + 4.7inch(120mm) = 12.7inch(220mm). Linear motion guides fully aluminum structure offer excellent strength and avoid rusting.

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Linear Rail Slide Linear Motion Stage Table 1.5Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC
