Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(300MM Stroke)

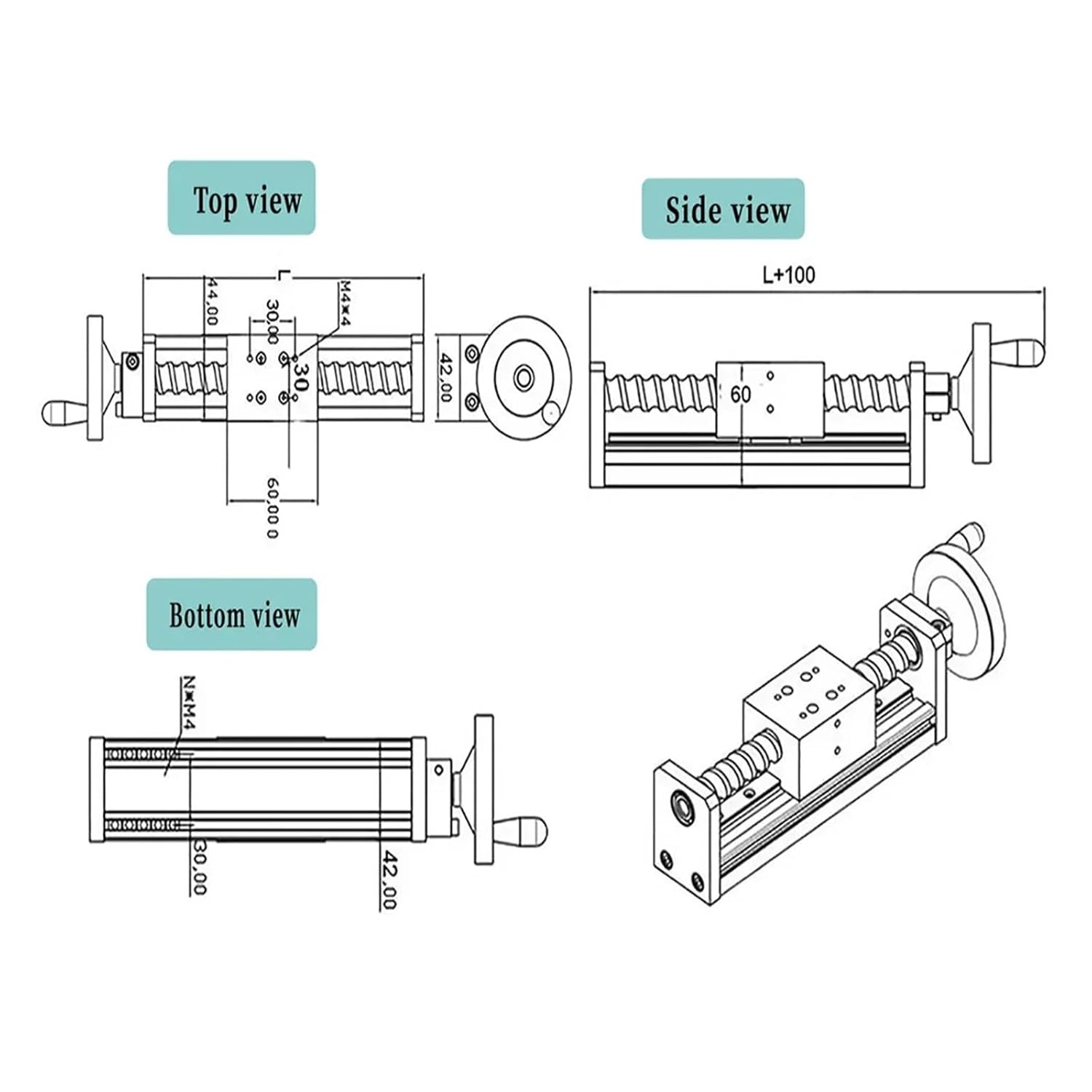

1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.3. High and more accurate positioningSpecifications:Model: RM-DXG6042Guide rail width or diameter: 12mmBall screw accuracy: C7Vertical load: 30KG (maximum)Horizontal load: 60KG (maximum)Mobile panel size: 60mm X 42mmSlider: MGN12HTotal length of slider: effective stroke + 180mmGuide rail type: MGN12R (12MM linear guide)Ball screw type: SFU1204 (screw diameter 12mm, pitch 4mm, screw rod rotates once, mobile panel moves 4mm)Effective stroke: 50mm-1000mm optionalMaximum speed: 500mm/sSlider material: aviation aluminumPacking list:1pcs sliding table with manual handwheel

• 1. Low friction, low operating noise, long service life, no stick-slip effect, and low heat generation.
• 2. Easy to install, maintenance-free, low starting torque, and accurate positioning.
• 3. Widely used in automated machinery such as lathes, machine tools, large transmission equipment, etc.
• 1. Precision ball screw with flange screw nut can ensure running stability and accuracy under high speed and heavy load
• 2. 12mm linear rail slider, high precision and high stability, smooth running, wear resistance and low resistance, extending the service life
• 3. Bearing steel is high precision, stable and more durable
