Insulation Resistance Tester Handheld Digital Insulation Resistance Tester with Insulation Resistance 0.01MΩ-200GΩ DC Voltage 0.0V-1000V AC Voltage 0.0V-750V Resolution 0.1V
4.7 (30 items)
Limited Time SaleUntil the end
06
20
33
$156.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $260.00
Product details
| Management number | 210914207 | Release Date | 2026/04/04 | List Price | $104.00 | Model Number | 210914207 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- (1) {Function}--------Insulation resistance test, and voltage test
- (2) {Rated voltage}--------100V 250V 500V 1000V 2500V
- (3) {Insulation resistance range}--------00.01MΩ～200GΩ ; resolution：0.01MΩ
- (4) {Alarm function}--------Send an alarm prompt when the measured value exceeds the alarm set point
- (5) {Data Storage}--------500 groups, "FULL" symbol indicates that storage is full
- Overflow Display---Exceed measurement range overflow function: “> ” symbol display Alarm Function:Alarm when the measured value larger or smaller than the alarm setting value Power Consumption:Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max Measure:200mA Max(backlight off)
- Weight---Instrument weight:2750g(including battery) Battery voltage:When the battery voltage is low, low battery symbol “ ”will display Automatic shut-down:automatic shutdown after 15 minutes boot Insulation Resistance:≥50MΩ(between Measuring line and housing) Pressure Resistance:AC3kV/50Hz 1min
- Working environment--Working Temperature and Humidity:－10℃～+50℃＜85%RH Storage Temperature and Humidity:－15℃～+55℃＜90%RH Suitable for Safety Regulations:IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、pollution grade 2、CAT Ⅲ 300V
- Application---Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlight display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
- 6 voltage levels---Digital insulation resistance meter consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). DC voltage measurement range is 0 ～ 1000V, AC voltage measurement range is 0 ～ 750V. DC current measurement range is 100pA-6mA. Capacitance measurement range is 10nF-50nF.
| Color | Grey |
|---|---|
| Model | VTSYIQI20240520161414VTSYIQI |
| Brand Name | VTSYIQI |
| Style Name | VTSYIQI20240520161414VTSYIQI |
| Manufacturer | VTSYIQI20240520161414VTSYIQI |
| Power Source | Battery Powered |

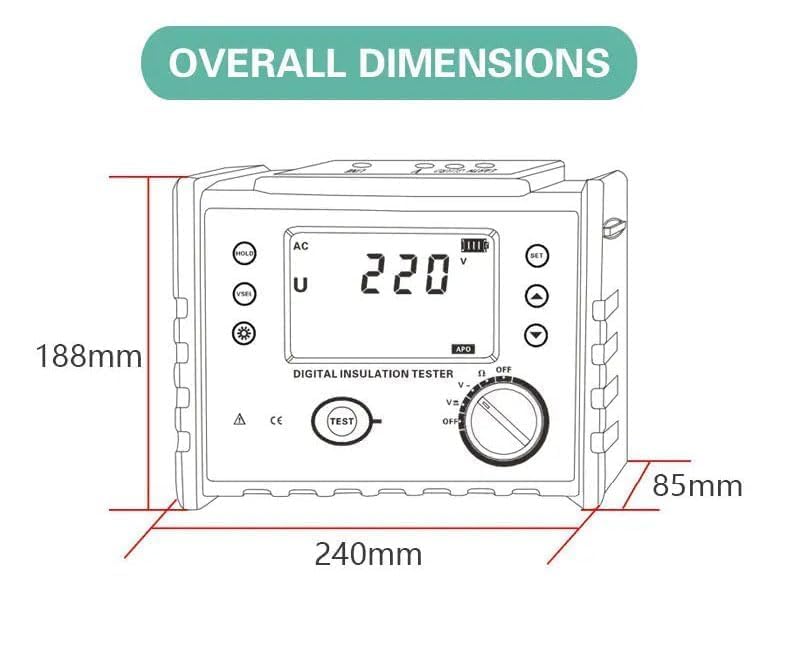

| Item Dimensions | 15.75 x 5.91 x 7.87 inches |
| Included Components | main host |
