INSPIRE ROBOTS LAS High Precision Micro Linear Servo Actuator,Stroke 10mm,Force 23.6lbs(105N), Drive&Control Integrated| for Robotics,Industrial Automation,Biomedical Instrument,Education|LAS10-021D

flash sale iconLimited Time Sale
Until the end
04
42
36

$149.99 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $249.99
quantity

Product details

Management number 211204649 Release Date 2026/04/04 List Price $100.00 Model Number 211204649
Category
  • Integrated High-Performance Design:INSPIRE-ROBOTS LAS10 Micro Linear Servo Actuator comes with a small integrated system combining a 8V core-less brushed motor, precision planetary reducer, position sensor, precision screw mechanism and closed-loop drive and control servo system in a single machine.Built-in absolute position sensor enables the retention of position information even during a power loss, without the need for a reference point.(D-LVTTL communication support).
  • Exceptional Precision,High Power Density: The mini linear actuator offers high-precision motion control with an accuracy of up to 0.02mm and a maximum stroke length of 10mm (0.39 inches). It achieves a full load speed of 4mm/sec and no-load speed of 13mm/sec, while providing a substantial force capacity of up to 23.6lbs(105N). Self-locking function activates after a power failure, ensuring safe operation with a maximum self-locking force of 150N.

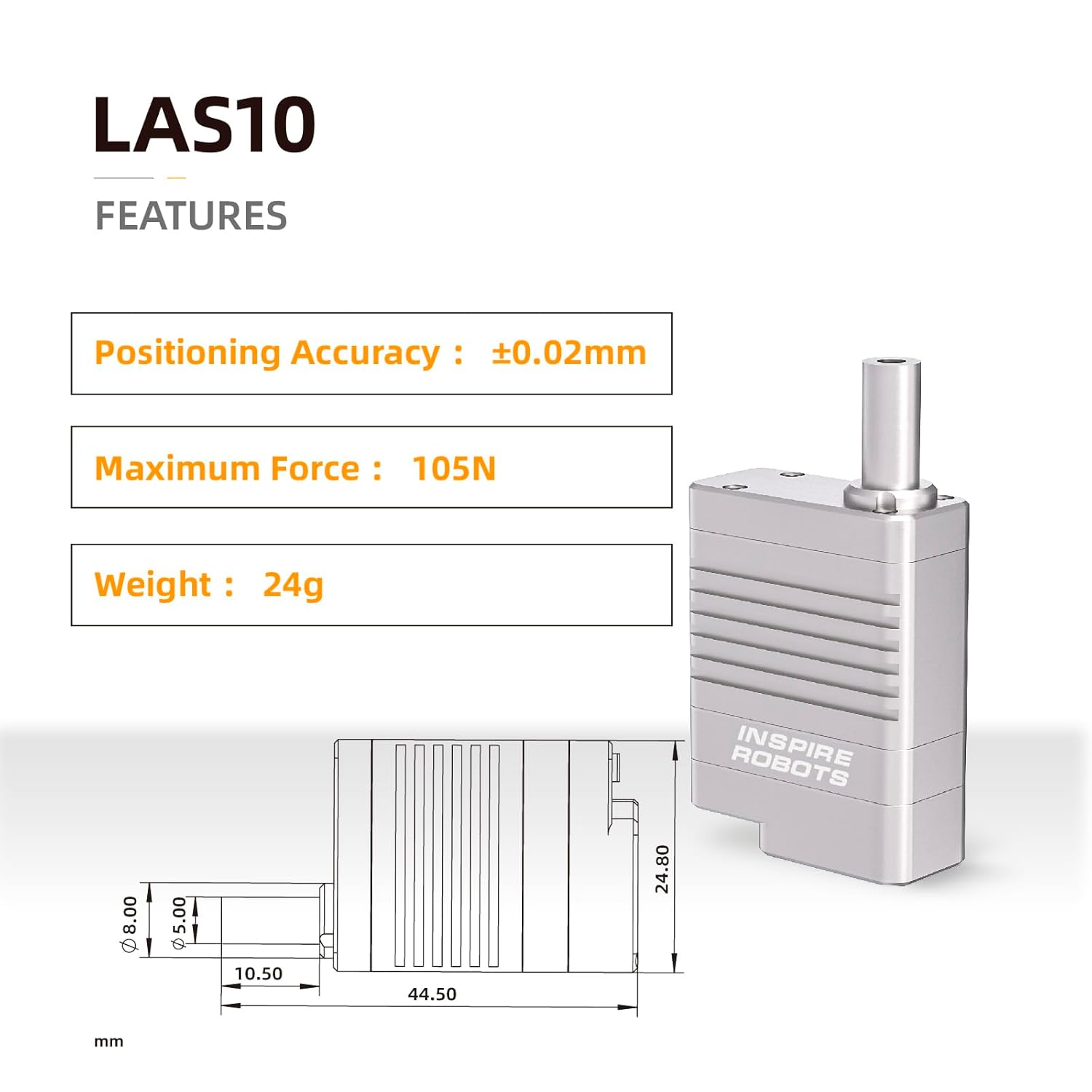

  • Compact Design,Quick&easy Installation:Boasting a slim appearance,lightweight structure,the micro linear actuator only size 44.5mm*24.8mm,weight 24g,perfect for space-constrained applications.Design with M3 threaded interface and standard mechanical interface,you can quickly and easily install it to your electric devices,The whole debugging kit included in the package.(a USB actuator connection cable,a communication module,a power supply unit).
  • Engineered with Self-researched Technology and Core patents:manufactured in our own factory for superior quality ; CE, RoHS, and FCC certified, making it perfect for robotics, Biomedical equipment, industrial automation equipment, education, and more.
  • Professional Support,Contact Us for Customization: Backed by Inspire-Robots' years of expertise in manufacturing micro linear servo actuators, available in various stroke lengths(10mm-50mm), force(21N-400N),speed level(4mm/s-70mm/s),Precison(0.002mm-0.1mm)and mounting options to meet diverse application needs. We have a professional and experienced technicians team to service you within 24 hours for your project's success.
Item Weight 3.52 ounces
Manufacturer INSPIRE-ROBOTS
Item model number LAS10-021D
Package Dimensions 8.67 x 5.49 x 2.76 inches
