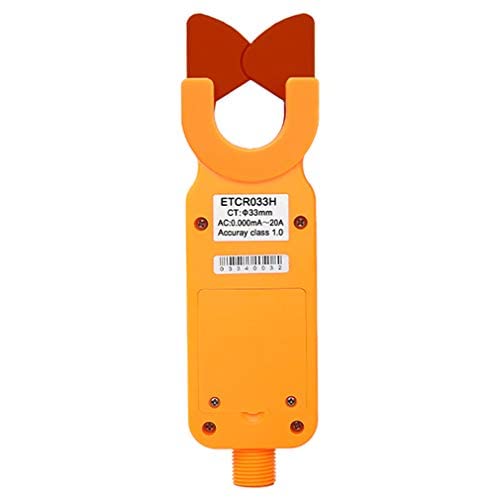

ETCR033H High Voltage Clamp Leakage Current Sensor Probe AC Current Meter Tester 0.00mA～20A Measurement Range 0.001mA Resolution

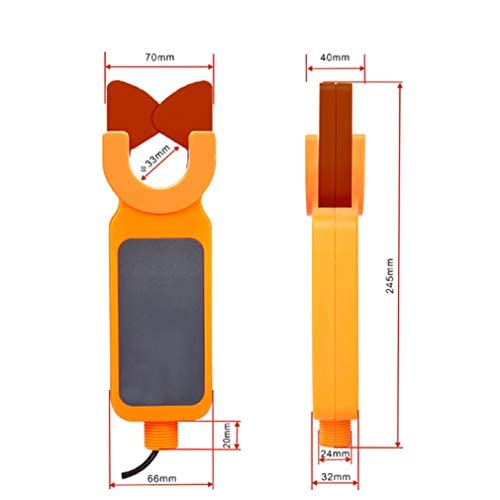

Main Function: 1:Detecting of AC leakage current/current, higher harmonic current, phase, electric energy, power, power factor, etc. 2:Range: AC 0.00mA～20A 3:Resolution: 0.001mA 4:Accuracy Class: 1.0 5:Turn Ratio : 800:1 6:Safety Class: CATⅢ600V 8:CT Structure: Clamp 9:CT Size : φ33mm Technical Specifications Range: AC 0.00mA～20A AC Resolution: 0.001mA Accuracy Class: ±1.0% Phase Error:≤2° Turn Ratio:400:1 Reference Load:≤80Ω（0.5W） Clamp Size:φ33mm Output interface: Induced current output Working Frequency:45Hz～100KHz Working Temperature:-15℃～50℃ Insulating Strength:AC3700V/rms ( between the core and coil) Safety Class:CATⅢ600V Output Mode:Inductive current output (can output current signal or voltage signal) Dimension:245mm×70mm×40mm Weight:230g

• ❤❤(1)ETCR033H high-voltage clamp leakage current / current sensor is suitable for high-precision detection of AC leakage current, higher harmonic current, phase, electrical energy, power, power factor and so on.
• ❤❤(2)Measurement Range : AC 0.00mA～20A,Resolution: 0.001mA,CT Size : φ33mm.
• ❤❤(3)With a unique automatic plug-in structure, it is easy to use, without disconnecting the line under test.
• ❤❤(4)Non-contact measurement, safe and fast, especially suitable for line fault inspection instrument.
• ❤❤(5)Widely used in electric power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
