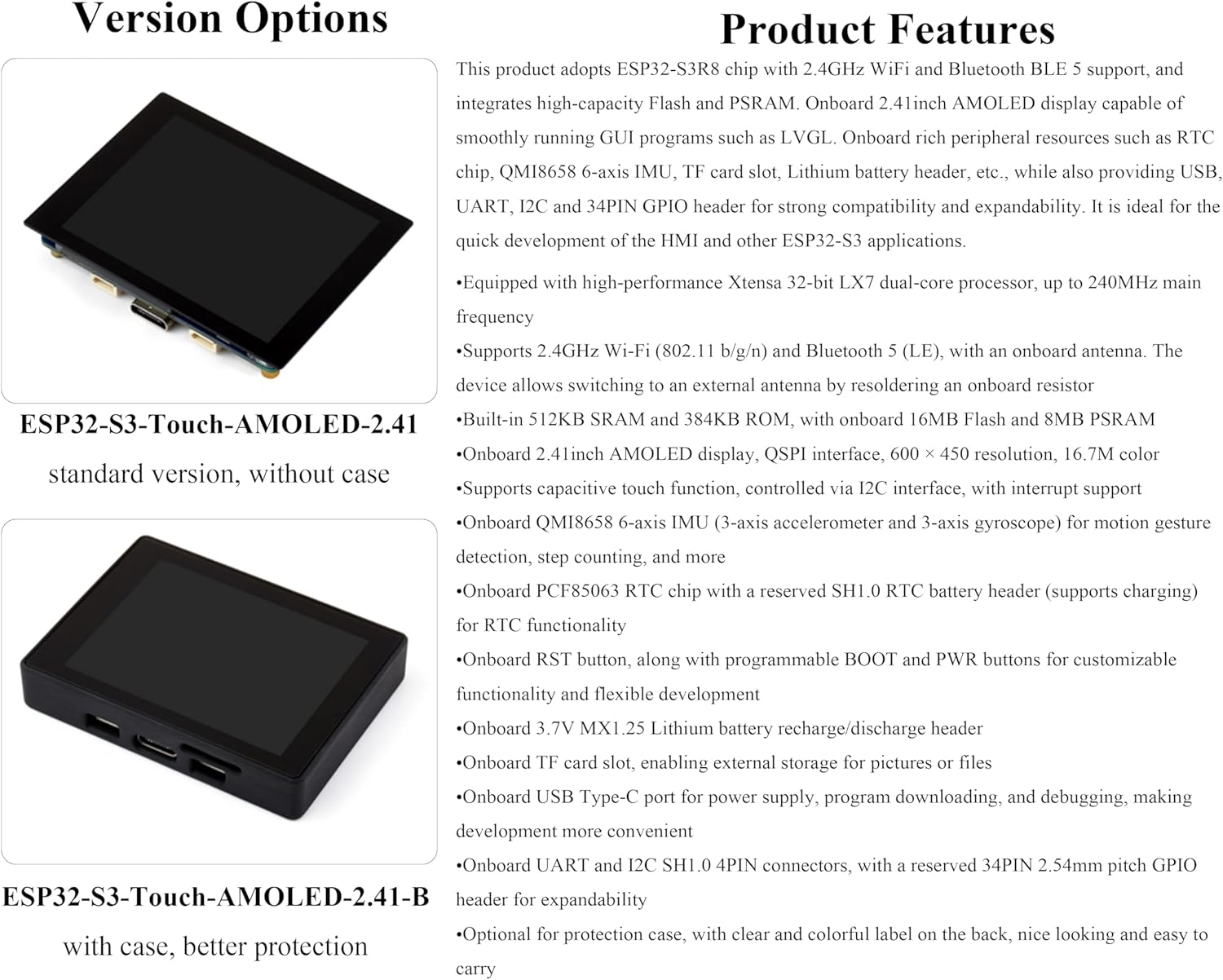

ESP32-S3 2.41inch AMOLED Touch Display Development Board, 600x450, 32-bit LX7 Dual-core Processor, Onboard Accelerometer and Gyroscope Sensor, ESP32 with Display (with Case Version)
4.3 (79 items)
Limited Time Sale$39.16 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209106413 | Release Date | 2026/03/29 | List Price | $26.11 | Model Number | 209106413 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Powerful ESP32-S3R8 Chip--- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna.

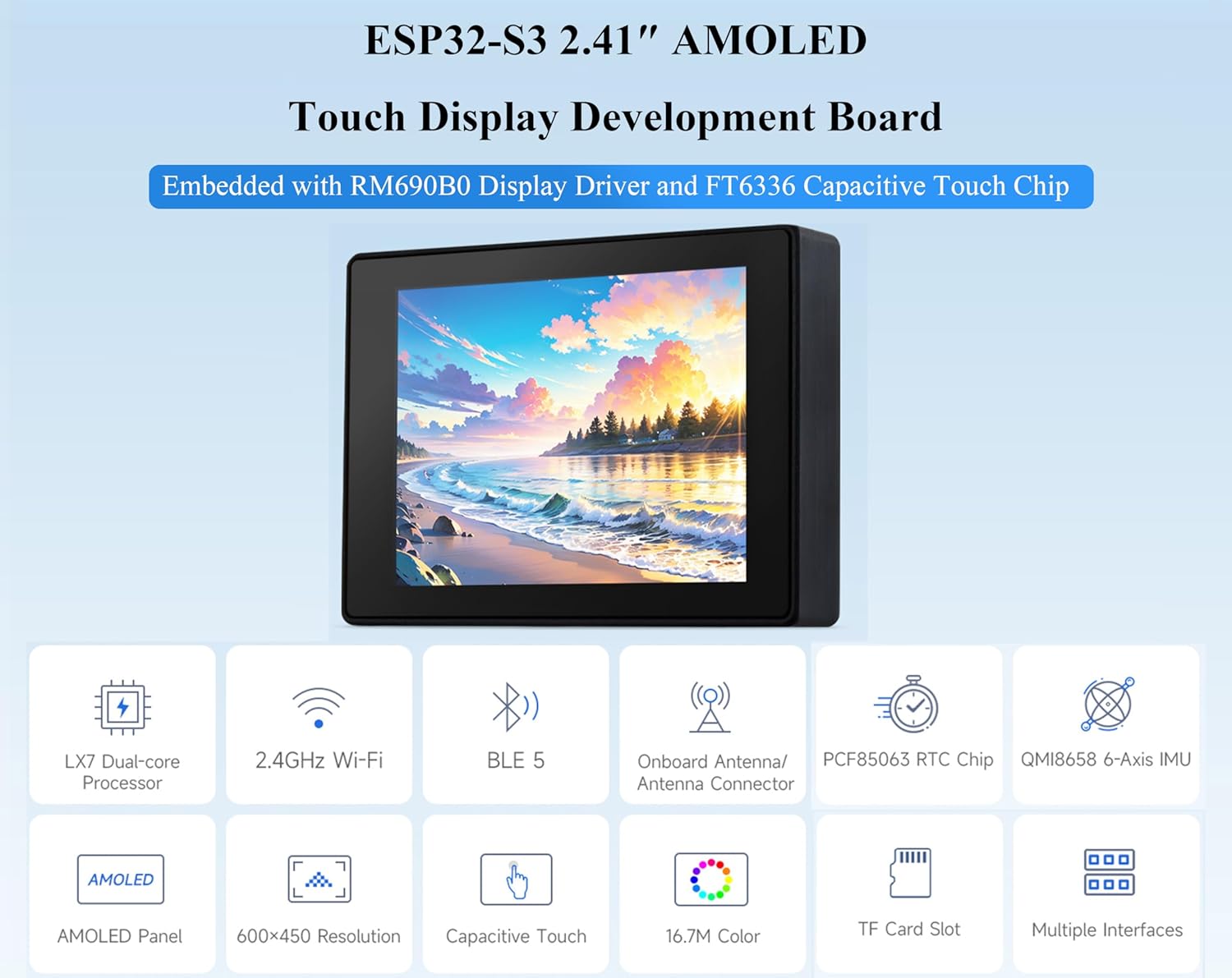

- AMOLED Touch Display--- 2.41inch AMOLED Touch Screen, QSPI interface, 600 x 450 resolution, 16.7M color. Supports capacitive touch function, controlled via I2C interface, with interrupt support. Delivers more vibrant colors, finer details, and more lifelike videos and images

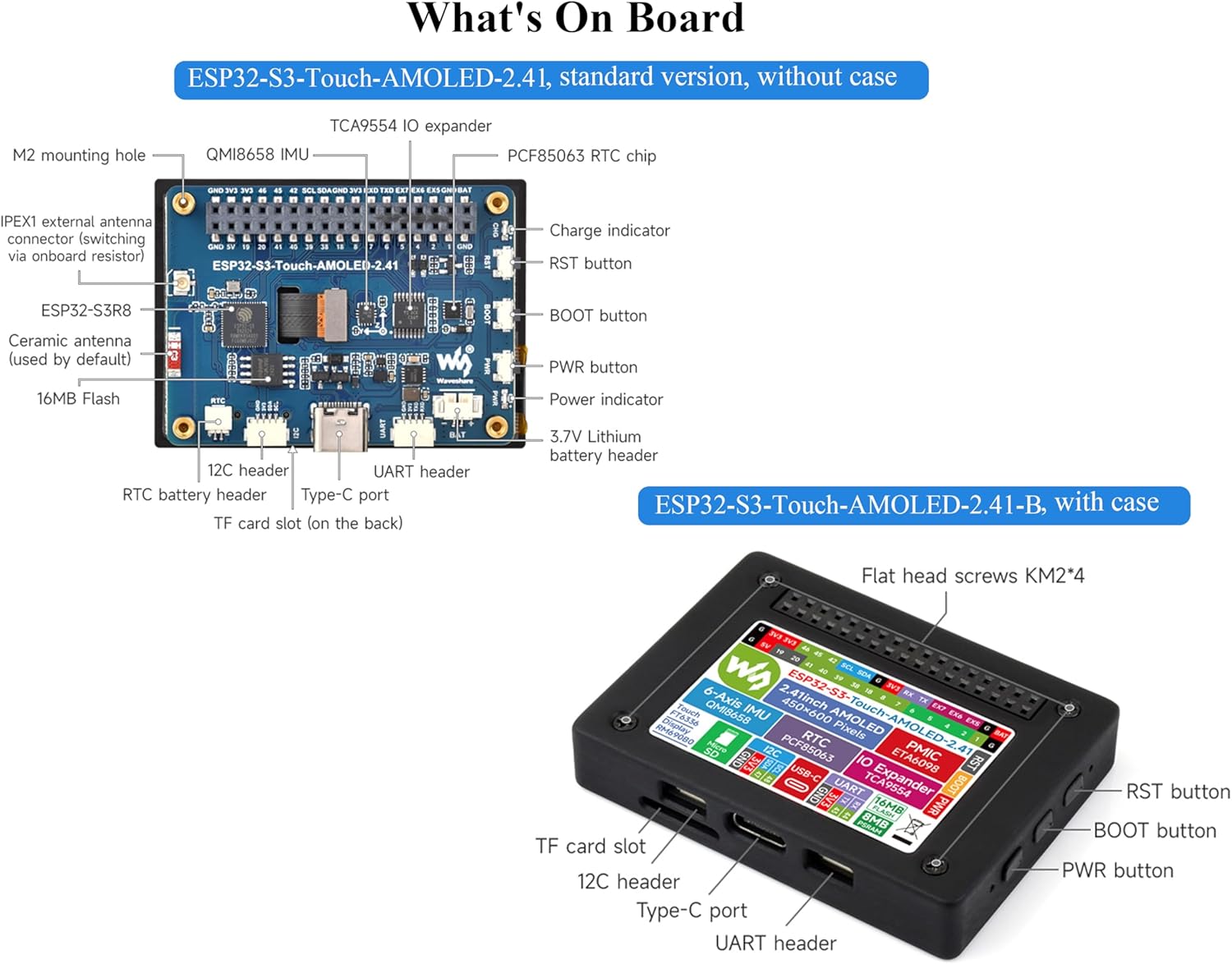

- Rich peripheral and Expandability--- such as QMI8658 6-axis IMU (for motion gesture detection/step counting,etc. ), PCF85063 RTC chip, TF card slot, Lithium battery header, etc., while also providing USB, UART, I2C and 34PIN GPIO header
- Connectors--- 3.7V MX1.25 battery recharge/discharge header. USB Type-C port for power supply/program downloading/debugging. UART and I2C SH1.0 4PIN connectors, with a reserved 34PIN 2.54mm pitch GPIO header for expandability
- Memory & Storage---Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/8xoelh
| Brand | Wonrabai |
|---|---|
| Model Name | ESP32-S3 |
| Resolution | 600 x 450 |
| Screen Size | 2.41 |
| Aspect Ratio | 4:3 |
| Display Type | OLED |
| Manufacturer | Wonrabai |
| Model Number | ESP32-S3-Touch-AMOLED-2.41-B |
| BuiltIn Media | ESP32-S3-Touch-AMOLED-2.41-B x1 (with Case Version)x1, SH1.0 4PIN cable ~100mm x2 |
| Response Time | 5 Milliseconds |
| Contrast Ratio | 1000000:1 |
| Total Usb Ports | 1 |
| Has Color Screen | Yes |
| Native Resolution | 600 x 450 |
| Display Technology | OLED |
| Additional Features | Portable |
| Warranty Description | Any questions, please let us know. |
| Connectivity Technology | USB |
| Display Resolution Maximum | 600 x 450 |
