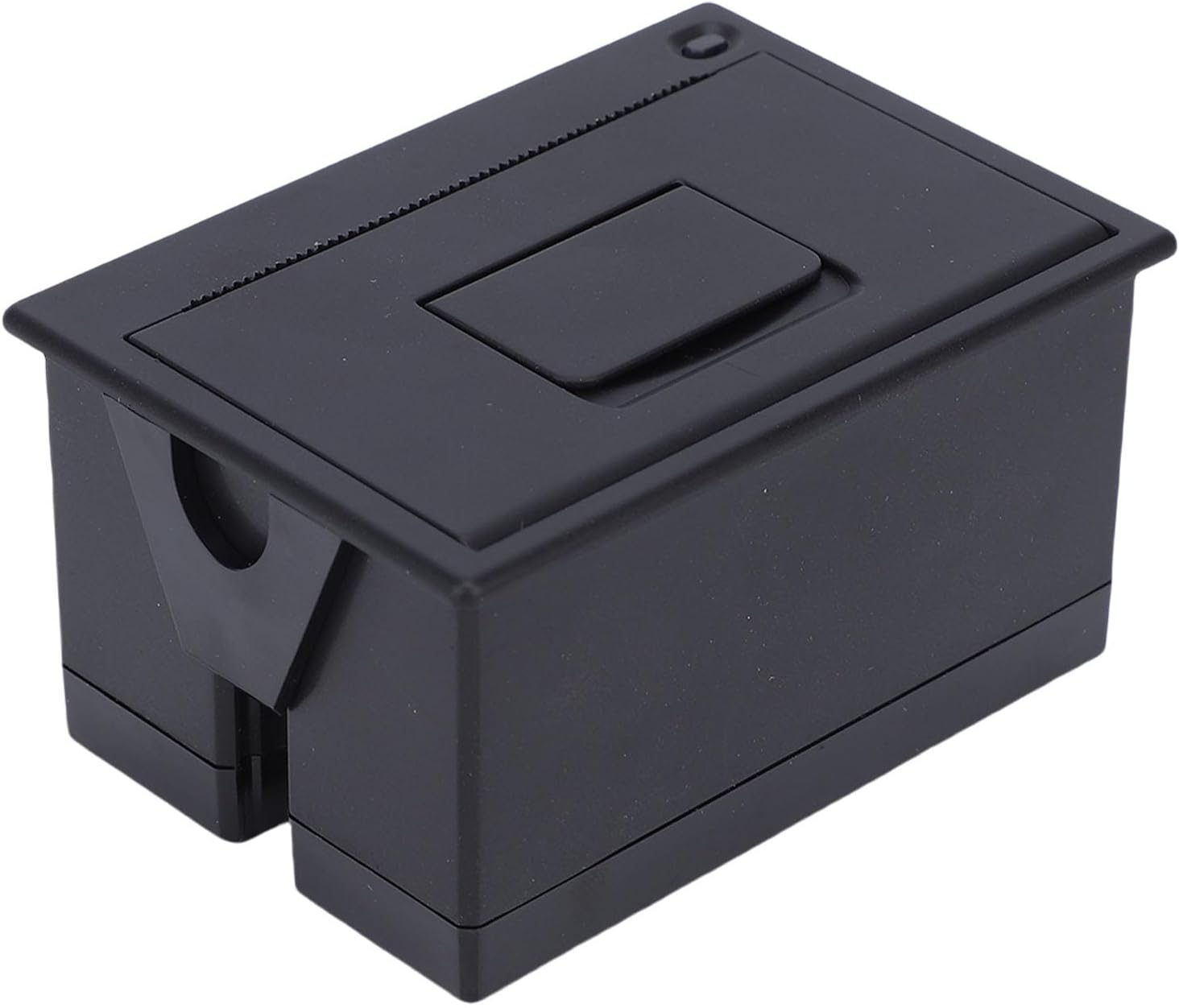

Embedded Thermal Receipt Printer 58mm Print Width BT USB TTL RS232 Serial Port Microcontroller Secondary Development MCU Printing Module

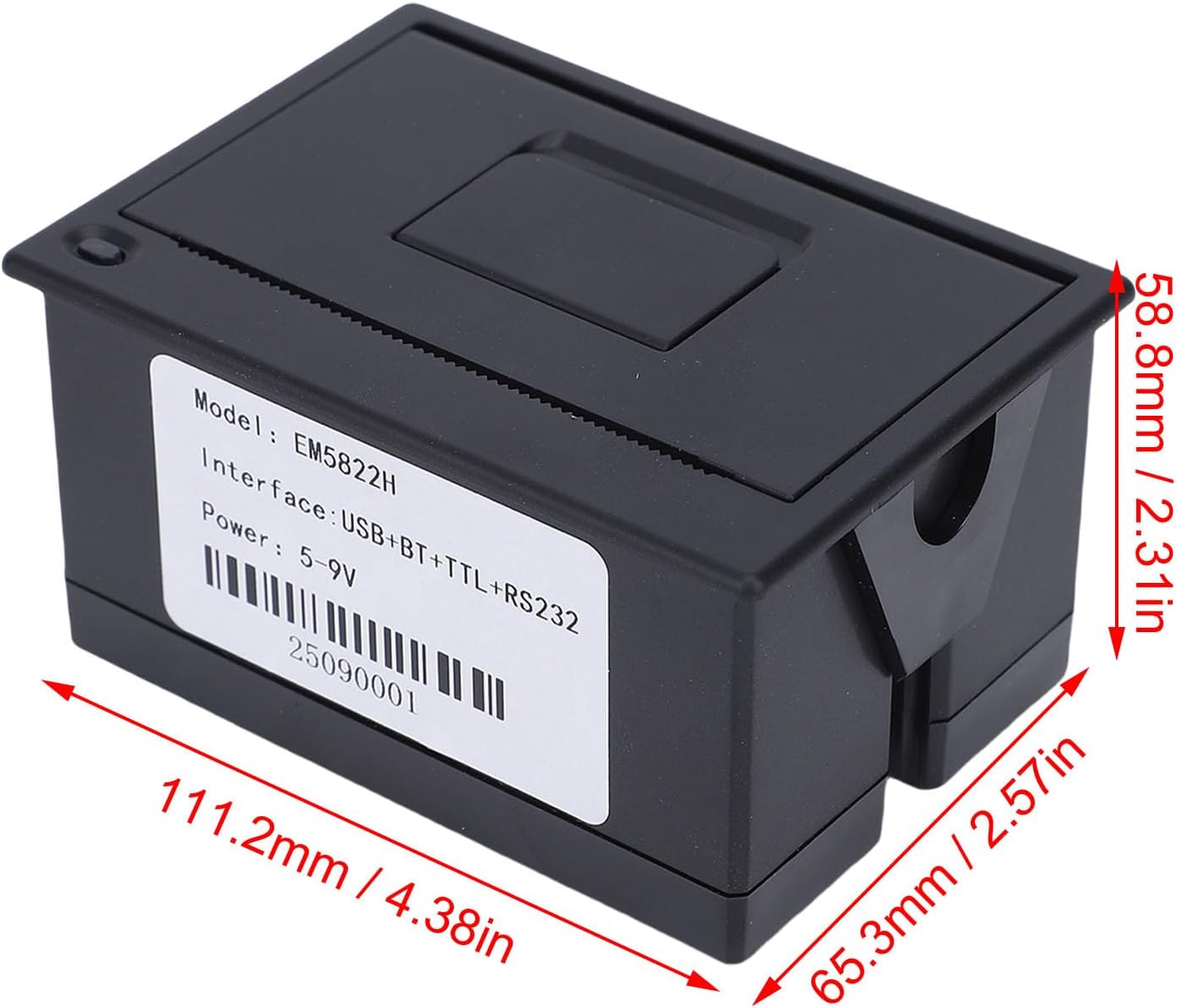

Spec: Item Type: Embedded Thermal Receipt Printer Material: ABS Resolution: 203dpi Print Method: Line Thermal Input Mode: Black and White Paper Width: ≤50mm Paper Roll Length: Approx. 27.5m / 90ft Print Width: Approx. 58mm / 2.28in Print Speed: 90mm/s Cutter: Without Working Current: 2.5A Dot Density: 384 Dots/Line, 8 Dots/mm Service Life: 13 Million Lines Interface Type: USB, TTL, RS232, BT Print Content: Text, Graphics, Characters, Curves, 1D Barcodes, 2D Barcodes Support System: for Linux, for Android, etc. Product Size: Approx. 65.3x111.2x58.8mm / 2.57x4.38x2.31in Color: Black How to Use: Directly install and use. Package List: 1 x Embedded Thermal Receipt Printer 1 x Paper Spool 2 x Cables 1 x Paper Roll

• Versatile Compatibility: This thermal receipt printer can be connected to MCU, for Android, for Linux and other platforms, for Android provides secondary development kit, provide ESC, POS printing instruction set and development materials.
• Flexible Connectivity: The embedded thermal printer features multiple interfaces, including RS232, TTL, USB, BT. You can choose the appropriate serial connection based on your requirements.

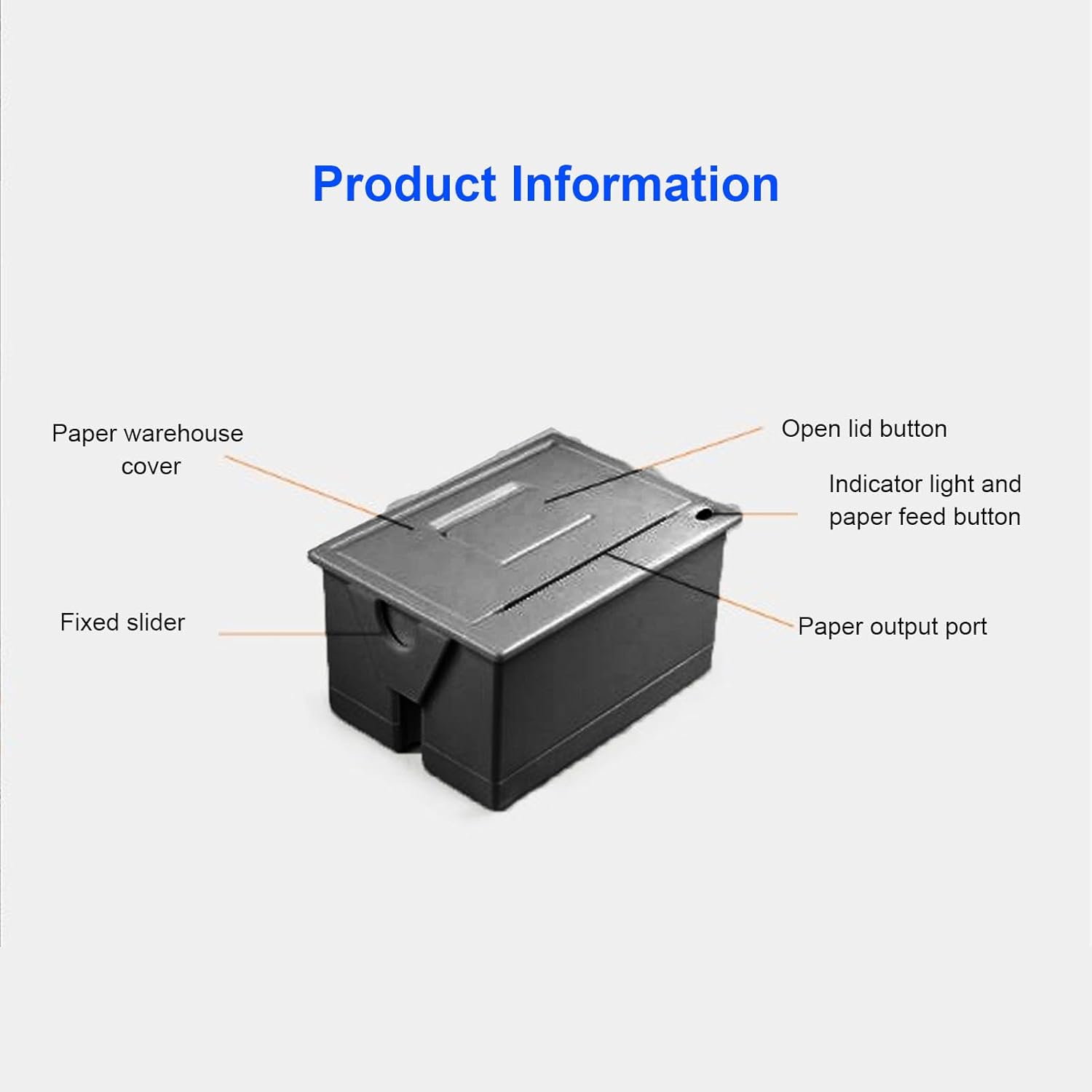

• Simple Operation: Simply open the paper compartment cover on the front panel to replace the paper, and by twisting the screws on both sides of the paper compartment, the slider can be moved to fix the printer to the device.
• Small Program Upgrade: Clear small program upgrade setting interface, solving the problem of non disassembly and non return to factory upgrade and maintenance.

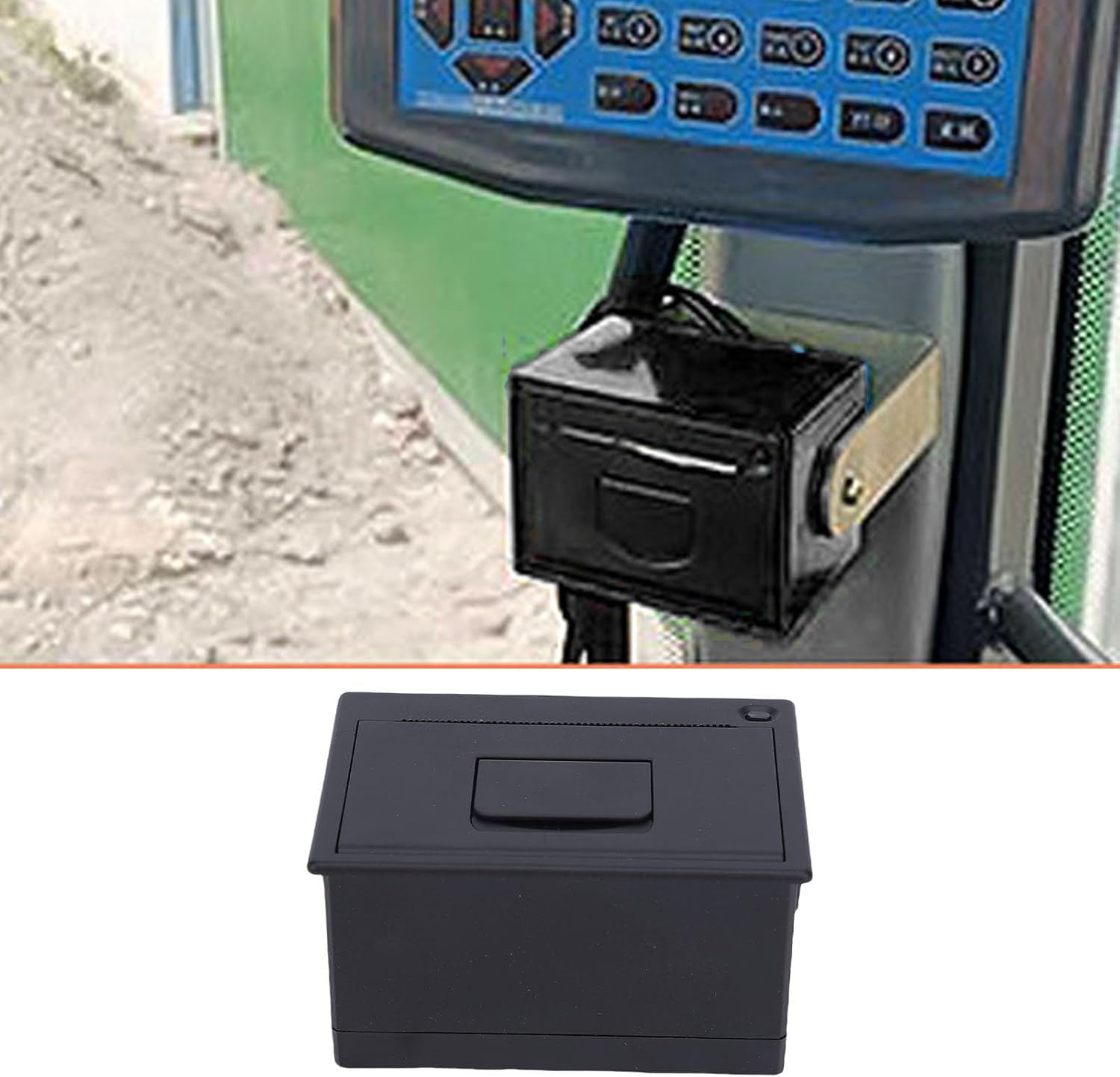

• Wide Applications: This embedded printer is suitable for industrial equipment control panel, cash register, self service machine, vehicle printing equipment, laboratory instrument, etc.
