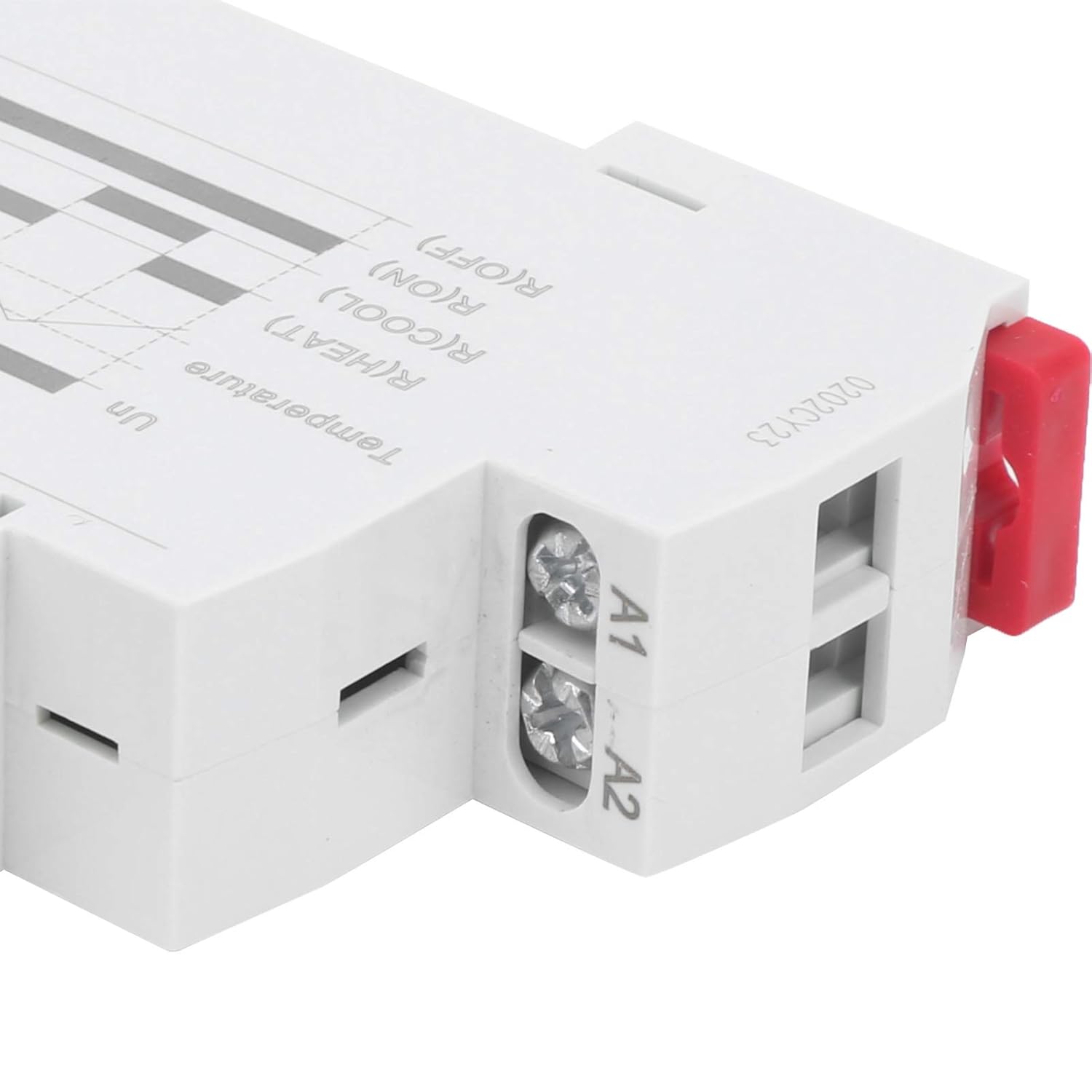

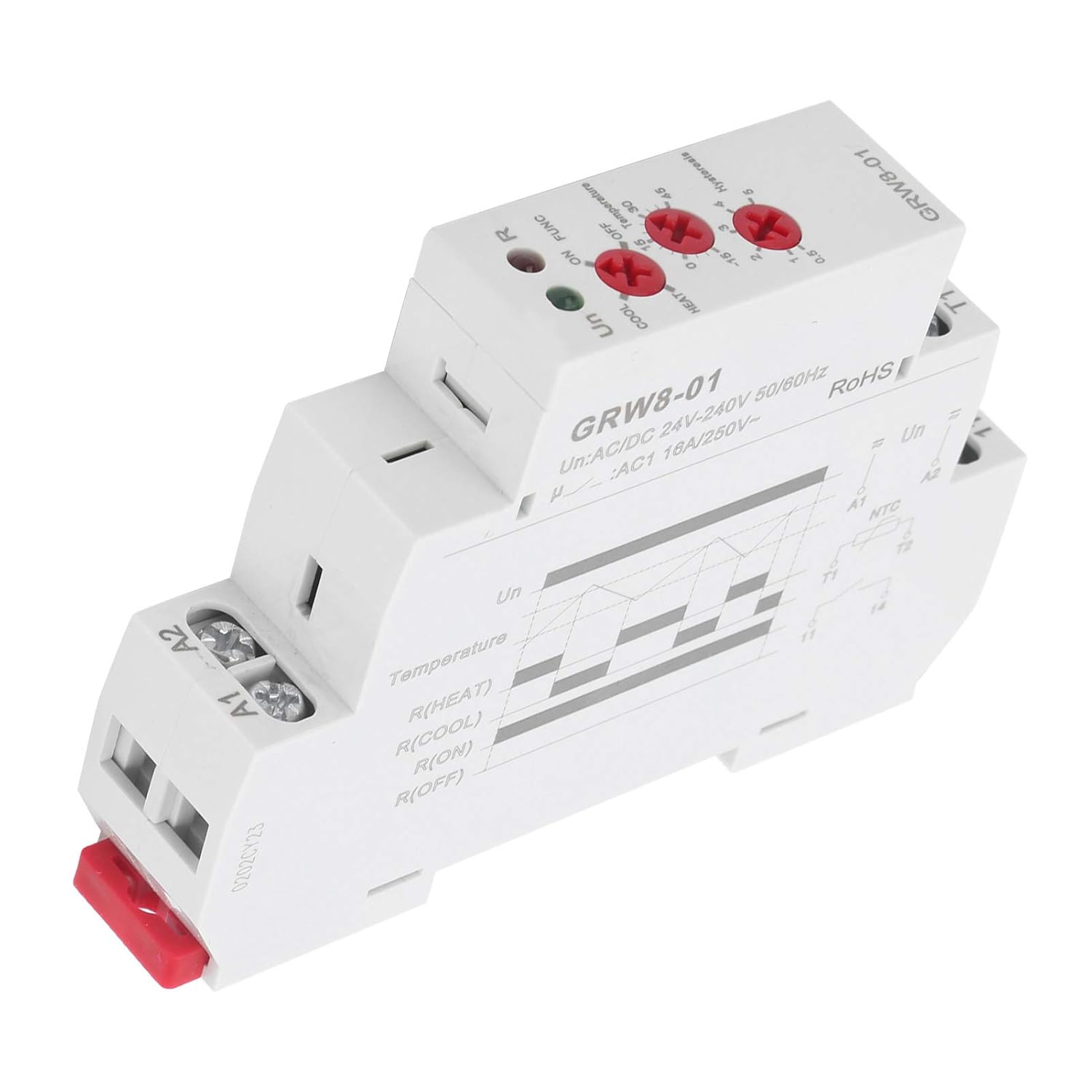

Digital Temperature Controller with Probe GRW8-01 - HighLow Temperature Control Relay for Heating and Cooling

Specification Item Type: Temperature Control Relay Function: high/low Temperature Power Terminal: L-N ed Power Supply Voltage: 24V-240V ed Power Frequency: 50/60Hz ed Impulse Withstand Voltage: 2.5kV ed Insulation Voltage: 250V Power Consumption: Maximum 2VA Power Supply Allowable Fluctuation Range: -15%~+10% Temperature Adjustment Range: -15℃ to +45℃ Temperature Adjustment Hysteresis Value: 0.5℃ to 5°℃ Working Mode: Heating-cooling-on and off can be set Power Indicator: Green LED Output Parameters: 1xSPST 16A/AC1 250VAC/24VDC Minimum Switching Power: 500mW Output Relay Indication: Red LED Mechanical Life: 1x10000000 Electrical Life (resistive Load): 1x100000 Working Environment Temperature: -20℃ ~+55℃ Storage and Environment Temperature: -35℃~+75℃ Installation Method: Approx. 35mm / 1.4in rail installation Level: IP20 Installation Location: Any Installation Altitude:

• Comprehensive Monitoring:---- The Temperature control relay can select heating/cooling mode to effectively high and low Temperatures.
• LED Status Indicators:---- The working status clearly indicated the LED indicator; the power indicator green, and the output relay indicator red, ensuring monitoring.
• Versatile Power Supply:---- Working power supply voltage 24V‑240V, ed power supply frequency 50/60Hz, allowing it to be compatible with various electrical systems.
• Compact Design:---- Utilize a 35mm rail installation with small size for carrying and storage, making the relay convenient to use while providing excellent performance.
• Wide Temperature Range:---- Temperature adjustment from -15℃ to +45℃ with a hysteresis value of 0.5℃ to 5℃, suitably designed for diverse applications.
