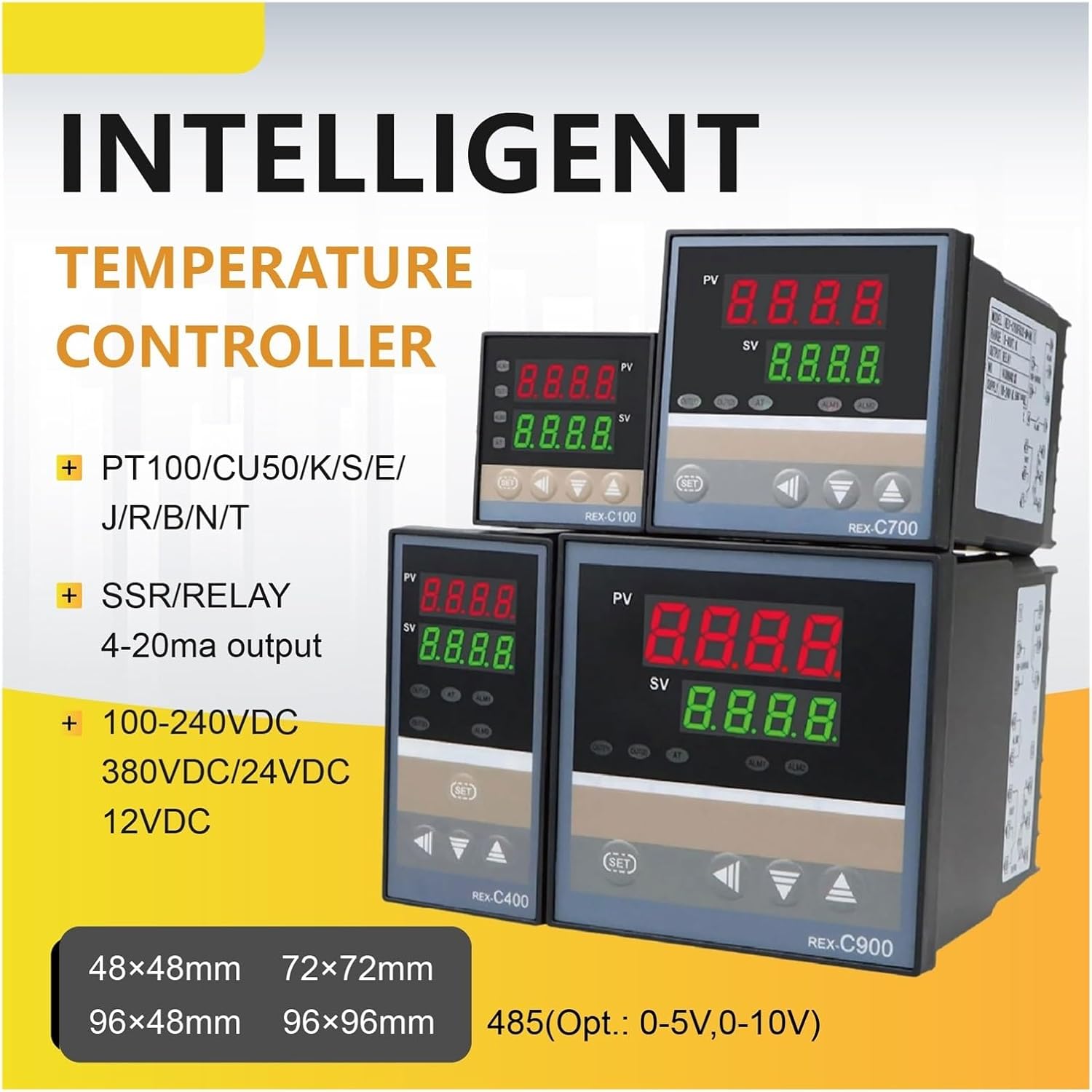

Digital Temp Thermostat Rex-C100 C400 C700 C900 Pid Temperature Controller with Solid State Relay Output

1.NOTEThis controller does not measure temperature directly - it reads external sensor inputs. The universal input version supports up to 1200°C, while the default K-type input supports up to 999°C.Due to page limitations, some configurations and features may not be listed. Please us for specific requirements. The default configuration for the digital temperature controller includes:.Power supply: 220V ±10%, 50Hz.Input signal options: K/E/J/PT100/CU50 (selectable).Output options: Relay, SSR solid-state relay, PT100, 4-20mA (selectable).Alarm: Fully adjustable across the entire rangeAvailable models and panel dimensions:.REX-C100:Panel size 48×48mm.REX-C400:Panel size 96×48mm.REX-C700:Panel size 72×72mm.REX-C900:Panel size 96×96mm2.ParametersParameterSpecificationTemperature Range0 - 1200°CRated Voltage220V~±10% 50HzPower Consumption4WControl ModeFuzzy PID ControlAlarm RangeFull-scale adjustableWiring MethodTerminal connectionOperating Temperature0 - 50°CRelative Humidity35%~85%RH (non-corrosive)Input TypesK/E/PT100 (selectable)Output OptionsRelay, SSR (solid-state relay)Accuracy±0.1% FS ±1 digit or ±0.5% FS ±1 digitModelPanel Dimensions (mm)REX-C10048 × 48REX-C40096 × 48REX-C70072 × 72REX-C90096 × 963.FaturesHigh Visibility DisplayClear digital tube display for enhanced readability.Stable Power SupplyBuilt-in copper transformer ensures consistent performance and longevity.Versatile Input and Output OptionsSupports K/E/PT100 inputs and relay/SSR output for diverse needs.Compact and Durable DesignVarious sizes available for different installation requirements.4.AlicationsInjection Molding MachinesIndustrial Ovens and DryersOther Industrial EquipmentOrigin : Mainland ChinaTemperature Range : 0 - 1200°CPower Consumption : 4WControl Mode : Fuzzy PID ControlAlarm Range : Full-scale adjustableWiring Method : Terminal connectionOperating Temperature : 0 - 50°CInput Types : K/E/PT100 (selectable)Output Options : Relay, SSR (solid-state relay)Model : Panel Dimensions (mm)

• Wide Temperature Range:Operates efficiently across a vast temperature range (0 - 1200°C), making it suitable for high-temperature processes.
• Compact Design with Multiple Sizes:Available in various panel sizes (48x48mm to 96x96mm), the controller fits seamlessly into diverse installation spaces.
• Versatile Input Options:Supports K/E/PT100 inputs, making the controller suitable for diverse temperature sensors in various environments.
• Durable Solid-State Relay Output:Features a robust solid-state relay output, offering reliable and consistent control for your heating or cooling needs.
