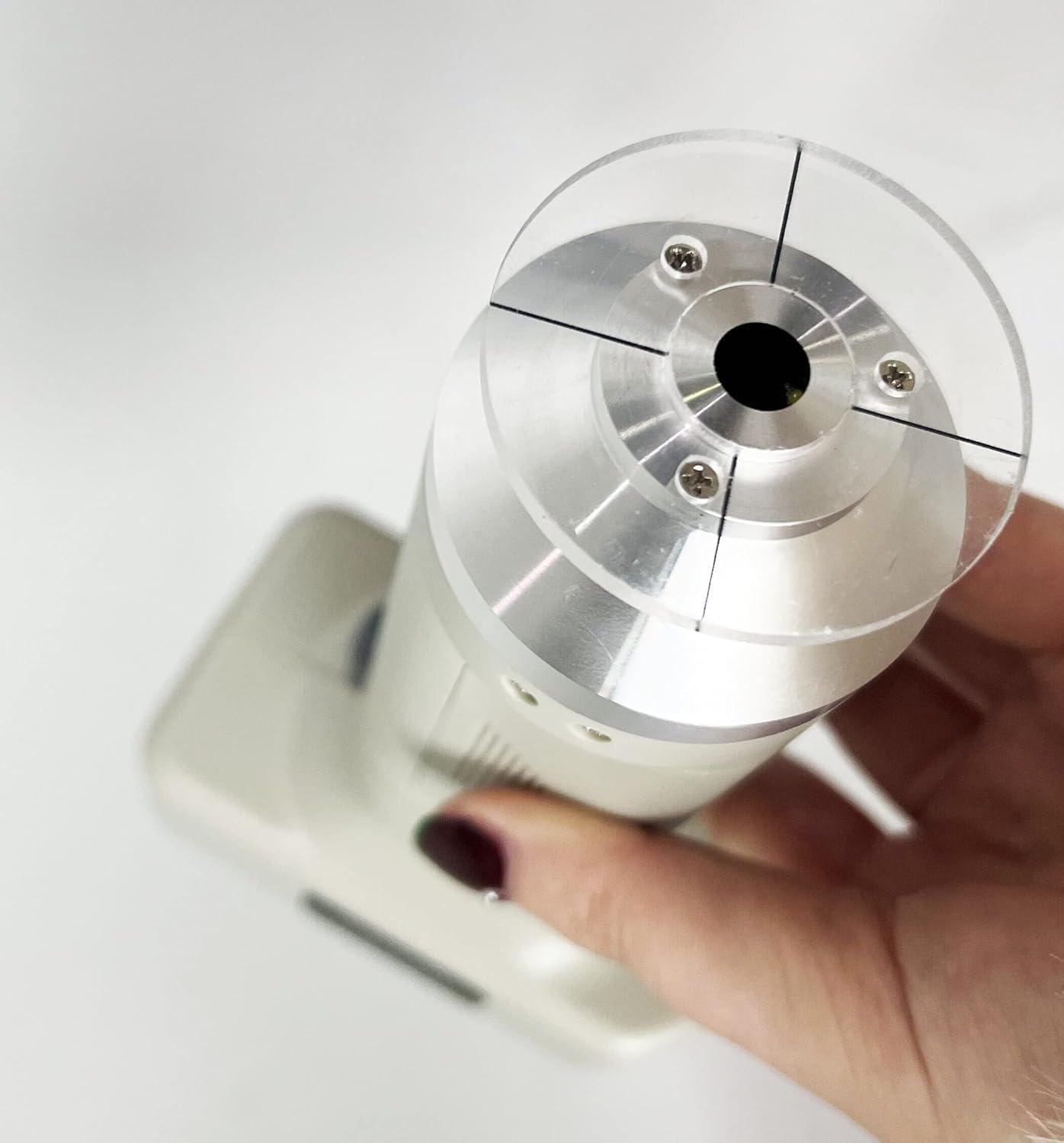

Digital Precise Colorimeters 8mm Color Difference Meter with Free Color Quality Management Software Lab Lch Measurement Modes L*a*b* L*C*H* ∆E*ab ∆(L*a*b*) ∆(L*C*H*) Display Mode

Features: Button & menu operation. Easy to understand. Reasonable price Commonly used of two measurement modes: Lab&Lch, easy to switch measurement Automatically displays the bias degree of the color difference about sample and standard sample Practical of the average measurement mode, uneven surface also can measure The color quality management software can analysis,exchange the color-difference and data Technical Specifications: Illuminant/light system:45/0 Measuring aperture:Ø8mm Display model: L*a*b*、L*C*H*、∆E*ab、∆（L*a*b*）、∆（L*C*H*） Operating language: Chines or English Measurement model: Single mode, Average mode Standard illuminant: D65 Observe:10° Repeatability:Standard deviation:within △E*ab:0.1 ( When the white calibration plates is measured 30 times, and averaged) Measurement spaceing: About 2 seconds Power source:4 AA-size battery（Battery not included in the package）or AC adapter Size(WxHxD): 110 ×60 ×190mm Weight: 310g Scope of application: Injection colors matched and quality control in production process Color-difference detection and color-difference control or printing process The color-difference analysis of spray paint and electroplate surface Color-difference of different area of the metal treating surface Color quality inspection of batch products outdoors On-line monitoring of color difference in production process

• (1)【Application】 Widely used in the Plastic.Spray paint. Design. Printing. Rag trade.Dipdye and etc, it main used on comparison and analysis of color-difference and quality control.It can measure monochrome and surface flat samples. According to the Lab, Lch principle of CIE color space, the measurement shows that the sample is tested. The color difference E and the Lab value of the sample. Suitable for internal and external color evaluation and data management.
• (2)【Automatic calibration】It is necessary to test the standard first, and save the value of the standard, and then test the sample. At this time, the L*, a*, b* values of the standard and the sample are displayed on the screen, and the L*,a*,b*,E* value are automatically calculated. The colorimeter will judge whether the sample is qualified according to the set color difference range. The measurement data is accurate and reliable.
• (3)【USB、Printer、Power Ports】The colorimeter has three ports: USB port, which can be connected to the computer for advanced settings and download data report (USB driver needs to be installed when connecting for the first time), micro printer socket, only when the micro-printer is connected in the test interface. In order to print the current data. The power socket can be connected to a power outlet when the battery is dead.
• (4)【Features】canstore 10 sets of standard samples.Automatically displays the bias degree of the color difference about sample and standard sample.Practical of the average measurement mode, uneven surface also can measure.The color quality management software can analysis,exchange the color-difference and data.
• (5)【Instructions】We provide a full set of operating videos and instruction manuals, please feel free to contact us if you have any questions. We will answer your questions.
