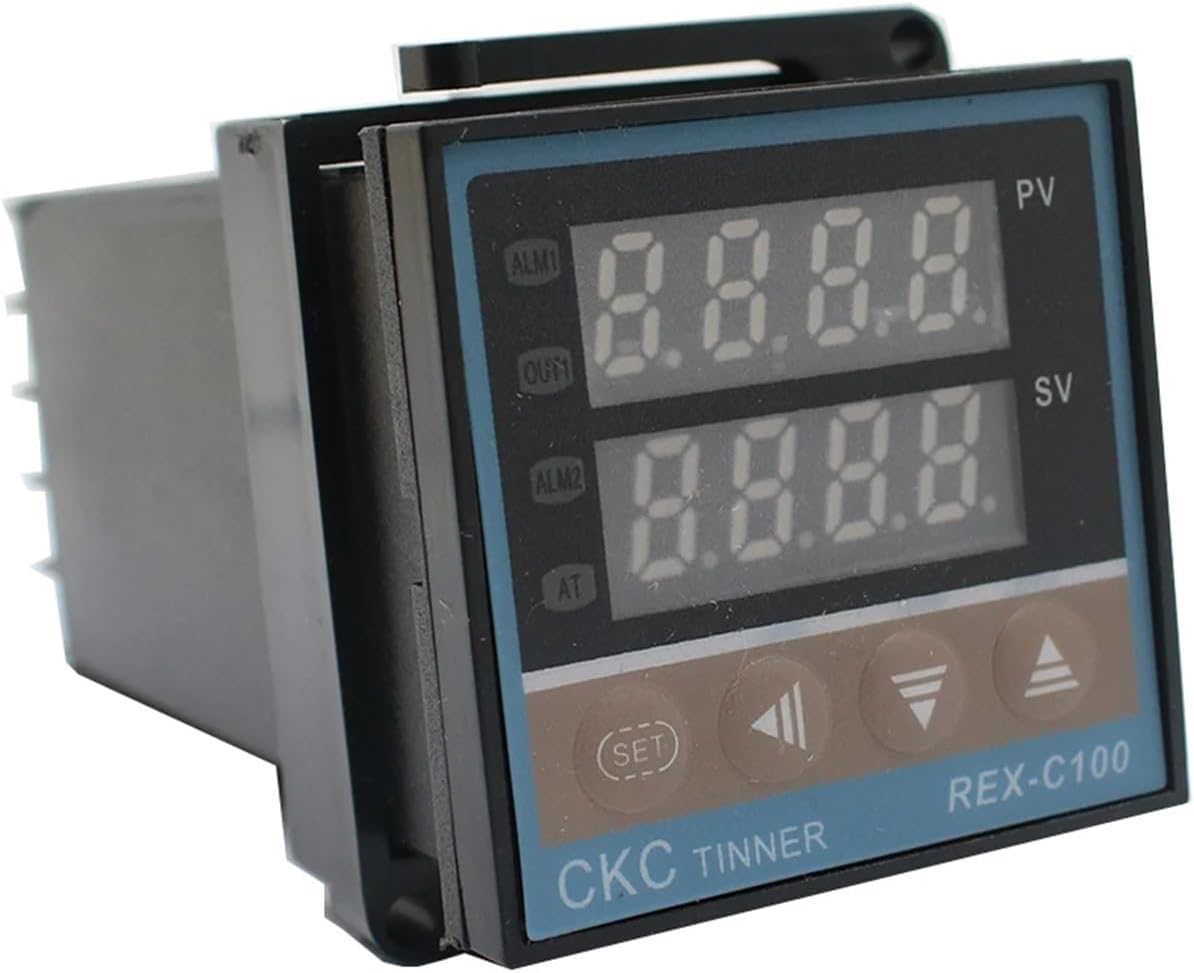

BIK REX-C100 Digital Temperature Controller Thermostat Relay Output + K Type thermocouple Sensor 48 x 48(REX-C100 1 Meter,Relay Output)

Features:1.REX-C100 Temperature Controller2.Measuring accuracy : ±0.5%FS3.Cold-end compensation tolerance : ±2 can be modified by software in 0~504.Resolution : 14 bit5.Sampling cycle : 0.5 Sec6.Power : AC 110-240V 50/60HZ7.Process value (PV), Setting value (SV)8.Output, alarm and self-tuning can be indicated by : LED9.PIN control (including ON/OFF, step-type PID and continuous PID)10.Self-tuning control11.Relay output : contact capacity 250V AC 3A (resistive load)12.Alarm function output : 2 way13.Proportional (P) : 0~full range (ON/OFF control when set to 0)14.Detective temperature range : 0 to 130015.Insulation resistance : >50M ohm(500V DC)16.Insulation resistance : 1500V AC/min<; 10 VA18.Service environment : 0~5019.Environment with no corrosive gas 30~85% RHPackage Included:1 x REX-C100 PID Temperature Controller

• REX-C100 Temperature Controller
• Measuring accuracy : ±0.5%FS
• Cold-end compensation tolerance : ±2 can be modified by software in 0~50
• Resolution : 14 bit
• Sampling cycle : 0.5 Sec
• Power : AC 110-240V 50/60HZ
• Process value (PV), Setting value (SV)
