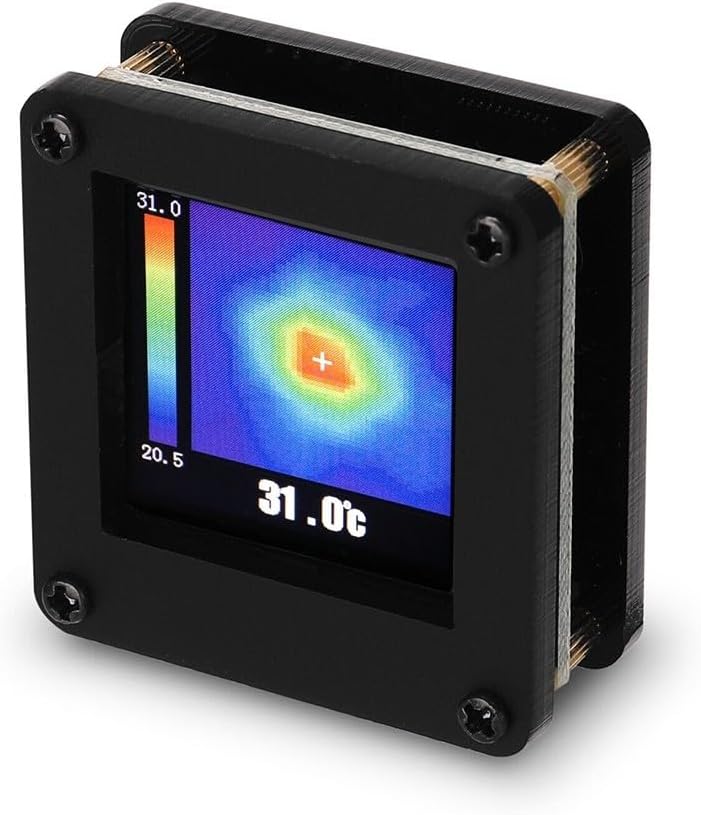

AMG8833 Thermal Imaging Camera Array Module With USB Power For Infrared Temperature Measurement

Features:* The module can be powered directly by USB 5V to produce infrared images.* Use AMG8833 infrared thermal sensor. Resolution is 8*8, and the maximum detection distance is 7 meters.* Can be applied to inspect electronic products.* Portable and compact, high performance, easy to use.Specifications:Part name: Thermal imagerMaterial: PCBColor: BlackTemperature accuracy;High performance high gain: typical value ±2.5℃±4.5℉High performance low gain: typical value ±3.0℃±5.4℉Human body detection distance: below 7m (reference value) 22.966 feetNETD;Typical value 0.05℃32.900℉1HzTypical value 0.16℃ 32.288℉ 10HzViewing angle: typical 60°Optical axis gap: typical within ±5.6°Current consumption;Typical 4.5mA (normal mode)Typical 0.2mA (sleep mode)Typical 0.8mA (standby mode)Setup time;Typical 50ms (time to enable communication after setup)Typical 15s (time to stabilize output after setup)Number of pixels: 64 (vertical 8*horizontal 8 for matrix)External interface: 1²C (fast mode)Frame rate: typical 10 frames/second or 1 frame/secondOperation mode: normal, sleep, standby (10 seconds or 60 seconds interval)Output mode: temperature outputCalculation mode: no moving average or two moving averagesTemperature output resolution: 0.25℃/32.45℉Number of sensor addresses: 2 (1²C Slave address)Thermistor output temperature range: 0℃~80℃ (32℉~176℉)Thermistor output resolution: 0.0625℃/32.1125℉Product size: 38 * 36 * 17mm / 1.5 * 1.4 * 0.7inProduct weight: 17g / 0.6ozPackage size: 90 * 80 * 20mm / 3.5 * 3.1 * 0.8inPackage weight: 19g / 0.7ozNote;Adapter and USB cable are not included, thank you for your understanding.Package Contents:1 x AMG8833 Thermal Imager (with case)

• [COMPLETE THERMAL IMAGING SOLUTION] This AMG8833 Thermal Imager includes a compact and portable design, perfect for inspecting electronic products. It features an 8x8 infrared thermal sensor, delivering precise temperature readings with a detection range of up to 7 meters.
• [USER-FRIENDLY OPERATION] Powered directly by USB 5V, this thermal imaging module is easys to set up and use. With a typical setup time of just 50ms, you can quickly start capturing infrared images without hassle.
• [LIGHTWEIGHT AND COMPACT] Weighing only 17g (6oz) and measuring 38mm x 36mm x 17mm (1.5in x 1.4in x 0.7in), this thermal imager is designed for portability, allowing you to take it anywhere you need.
• [SIZING REMINDER] Please check the product dimensions carefully to it meets your needs.
