AC110V 6–100A Dual Power Transfer Switch, 4Pole ATS Automatic/Manual Changeover Transfer Switch for Home Generator Solar Power System, with Auto Selector Over/Under Voltage Protection, 50/60Hz
4.1 (93 items)
Limited Time Sale$20.74 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210751653 | Release Date | 2026/04/02 | List Price | $13.83 | Model Number | 210751653 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Durable Construction, Built to Last: Rated current: 6A-100A, Rated working voltage: AC110V, Frequency: 50/60Hz, Number of poles: 4 poles, Conversion time: ≤ 2S, Outdoor generator transfer switches has upgraded to flame retardant material, has sturdy structure, wear resistance, corrosion resistance, and high temperature resistance, even in high temperature, it can work excellently

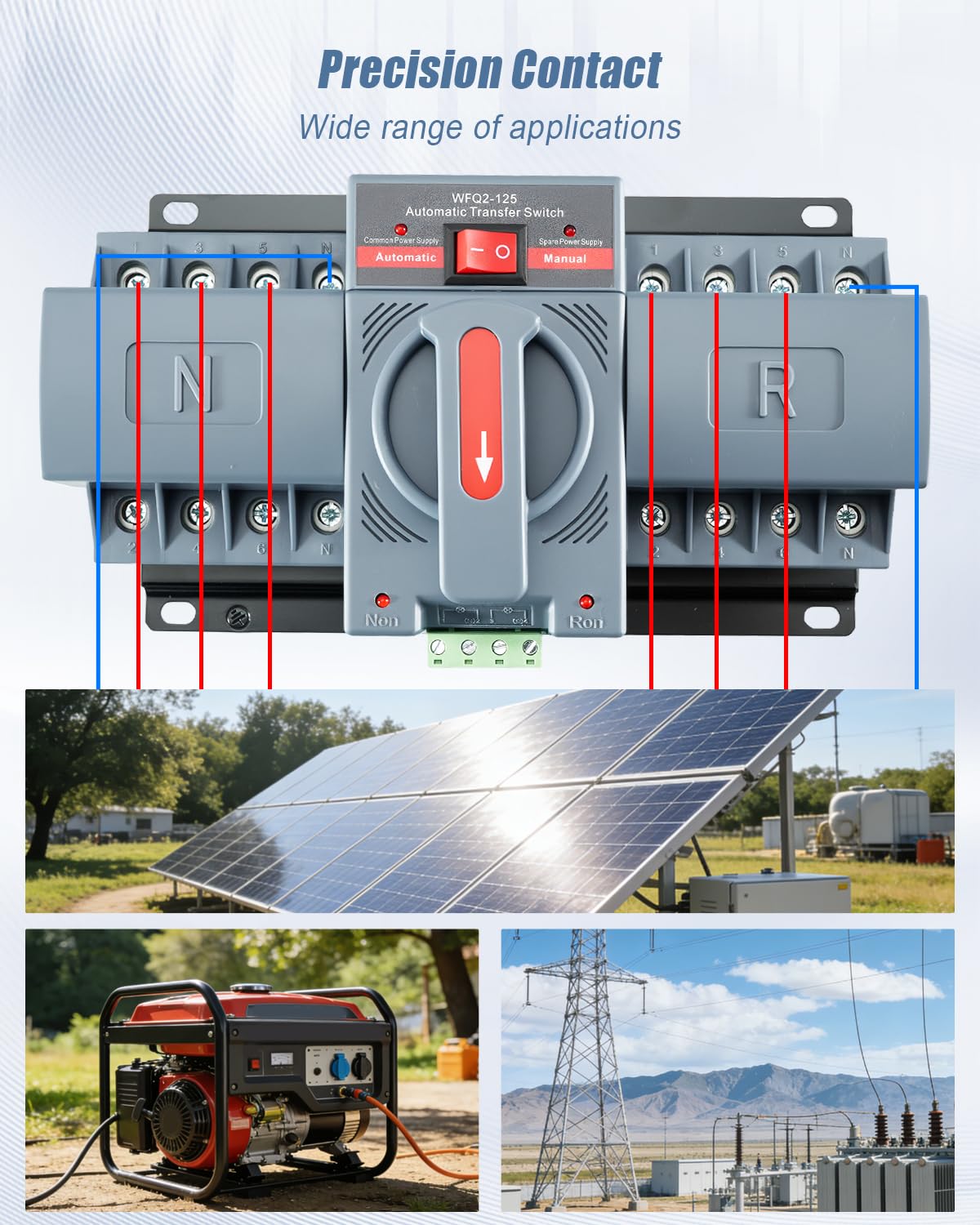

- Precision Contacts, Wide Application: Transfer switch for home generator use high quality alloy contacts with excellent conductivity and sensitive signals, it can quickly respond during automatic or manual conversion, support three-phase four wire power grid, home or outdoor generators, power grids, and solar energy systems, whether used for home backup or industrial equipment protection, it can stable power switching
- Easy & Reliable Power Switching: Automatic transfer switch provides reliable switching between the main grid and backup power, when main supply fails or voltage becomes unstable, ATS automatically transfers to backup power within 2 seconds, switches back once normal voltage is restored, keep your equipment running steadily, ensures a continuous power experience

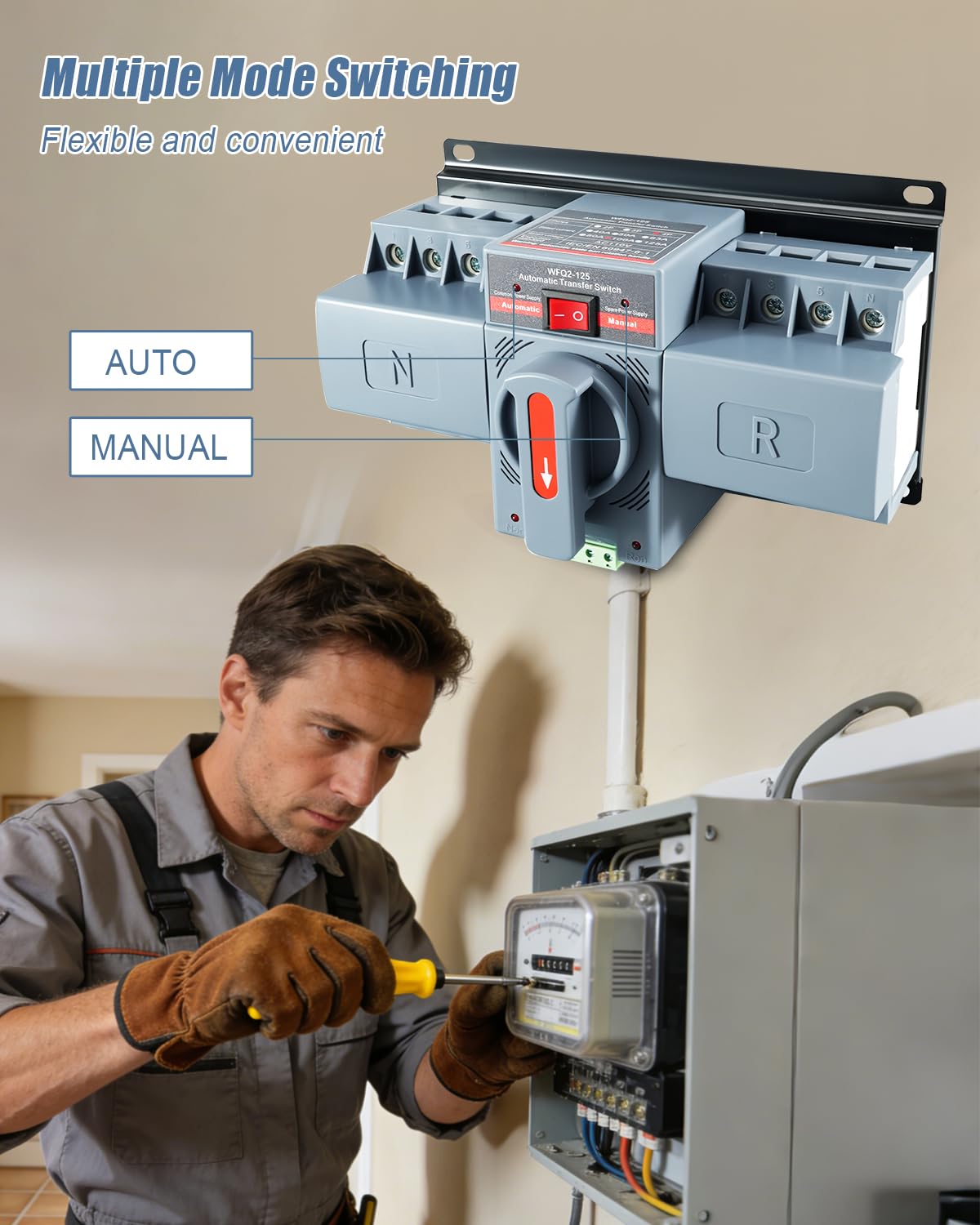

- Automatic & Manual Dual Mode Control: Generator transfer switch is designed with both automatic and manual operation modes, offers complete flexibility for power management, it performs auto changeover during power failure in automatic mode, In manual mode, you can select main or backup power, simple to manage power source anytime you need
- Smart Overvoltage & Undervoltage Protection: Undervoltage value: 85V, recovery value: 95V; Overvoltage value: 145V, recovery value: 130V, Install generator ats switch for keeping a close eye on your electricity and protects your devices from damage, if the voltage goes too low (below 85V) or too high (above 145V), it automatically cuts off the power, only reconnects when it’s safe, safer to use
| Wattage | 11000 watts |
|---|---|
| Terminal | Screw |
| Brand Name | GMURA |
| Unit Count | 1.0 Count |
| Switch Type | Automatic/Manual |
| Circuit Type | 4-way |
| Contact Type | Normally Open |
| Manufacturer | GMURA |
| Material Type | Alloy Steel |
| Mounting Type | Panel Mount |
| Connector Type | Screw Terminals |
| Current Rating | 100 Amps |
| Operation Mode | Automatic / Manual |
| Number of Items | 1 |
| Contact Material | Alloy |
| Operating Voltage | 110 Volts (AC) |
| Number of Positions | 4 |
