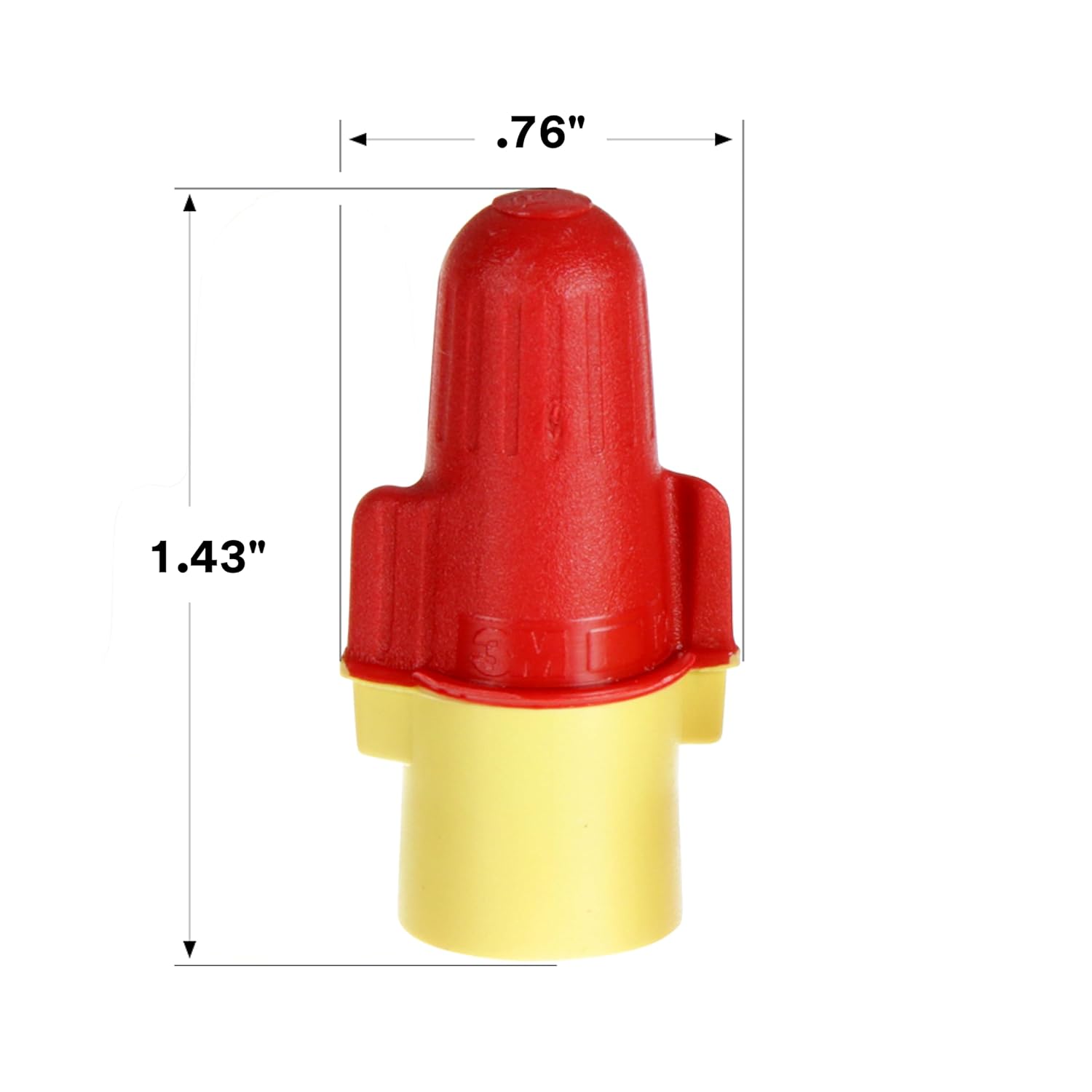

3M Performance Plus Wire Connector R/Y+JUG, Red/Yellow, Flexible Steel Spring Connectors, Copper, CSA Certified, UL Listed, Jug of 500, 22-8 AWG

3M Performance Plus Wire Connectors can electrically connect two or more conductor ends in a pigtail application and insulate the connection. A wider wire range lets three R/Y+ connectors handle the work of eight standard connectors, with a wire range of No. 22 through No. 8 AWG solid and stranded copper conductors. These flame-resistant connectors are UL Listed as a pressure wire connector and meet CSA Standard C22.2 No. 188-M1983, making 3M Performance Plus Wire Connectors as easy to use as they are dependable for electrical cable applications. 3M Performance Plus Wire Connectors Because of their increased wire range, just three 3M Performance Plus Wire Connectors handle the work of eight standard connectors. O/B+ replaces the orange, blue and gray wire connector style connectors, as well as 70% of the yellow wire connector and wing style connectors. R/Y+ replaces both red and yellow wing style connectors. B/G+ covers both the large blue and gray connectors. This simplifies selection of the right connector for a wide range of wiring jobs. There’s also less inventory to manage, and a better chance you’ll have the connector you need to do every job. A Better Bite for a Better Connection. 3M Performance Plus Wire Connectors O/B+, R/Y+ and B/G+ now have a better bite. Wires feed into the connector more easily, improving the security of the connection and increasing the level of pull out. New Design Allows Easier Installation. We have modified the internal design of the O/B+, R/Y+ and B/G+ wire connectors. Installation is smooth, fast and easy on the hands. Flexible Skirts Provide Safety. The flexible skirts on the O/B+, R/Y+ and B/G+ wire connectors make the workplace a safer environment. The flexible skirt provides protection against potential shock situations.

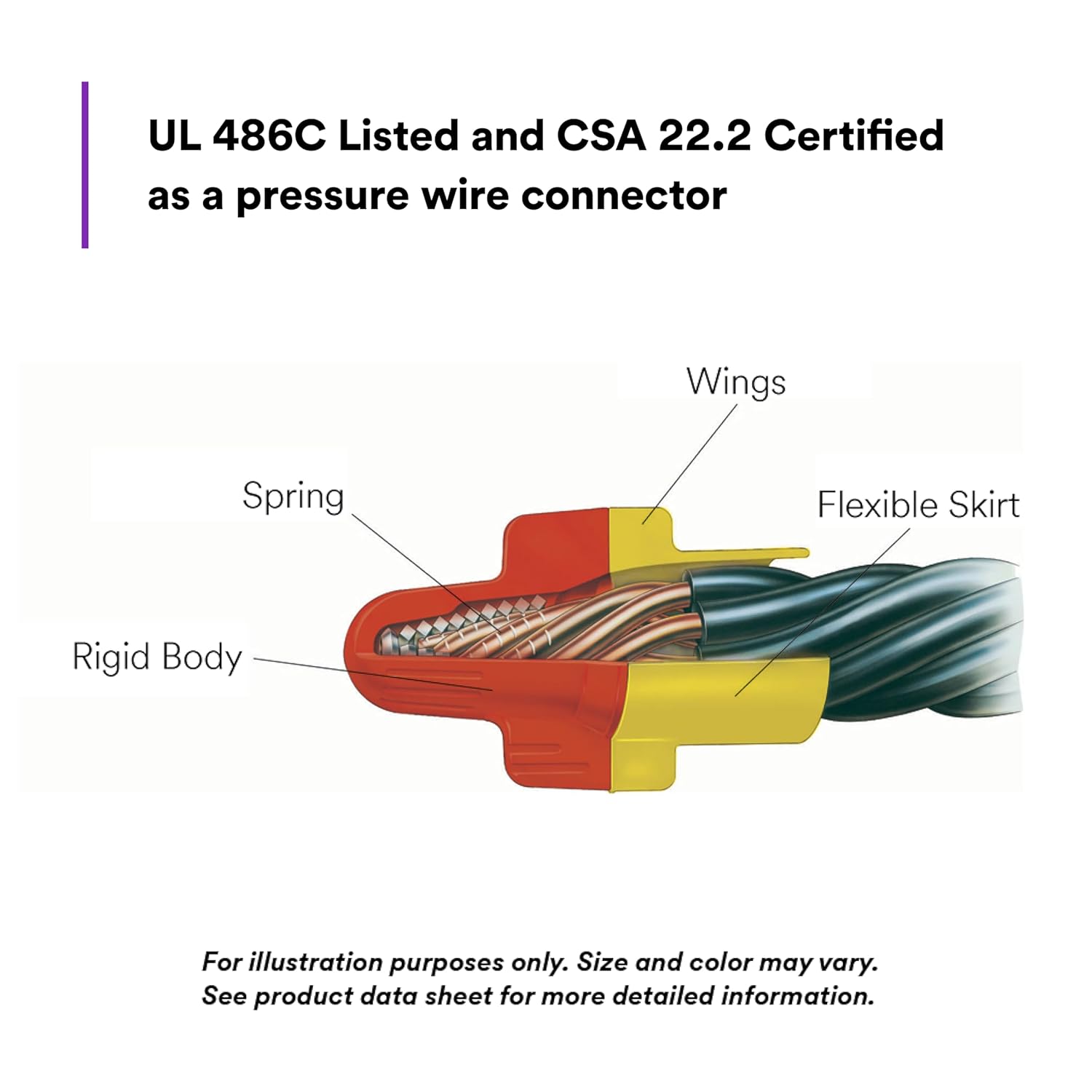

• CERTIFIED CONNECTOR: UL 486C Listed and CSA 22.2 Certified as a pressure wire connector
• FLEXIBLE SPRING: Provides expansion room for use with a wider wire range--22-8 AWG solid and stranded copper conductors
• STRONG AND SECURE: Delivers a powerful grip to ensure a reliable connection
• FLAMMABILITY RATING: UL94 V-2 flammability rating
• WIRE RANGE: 22-8 AWG for solid and/or stranded copper conductors
