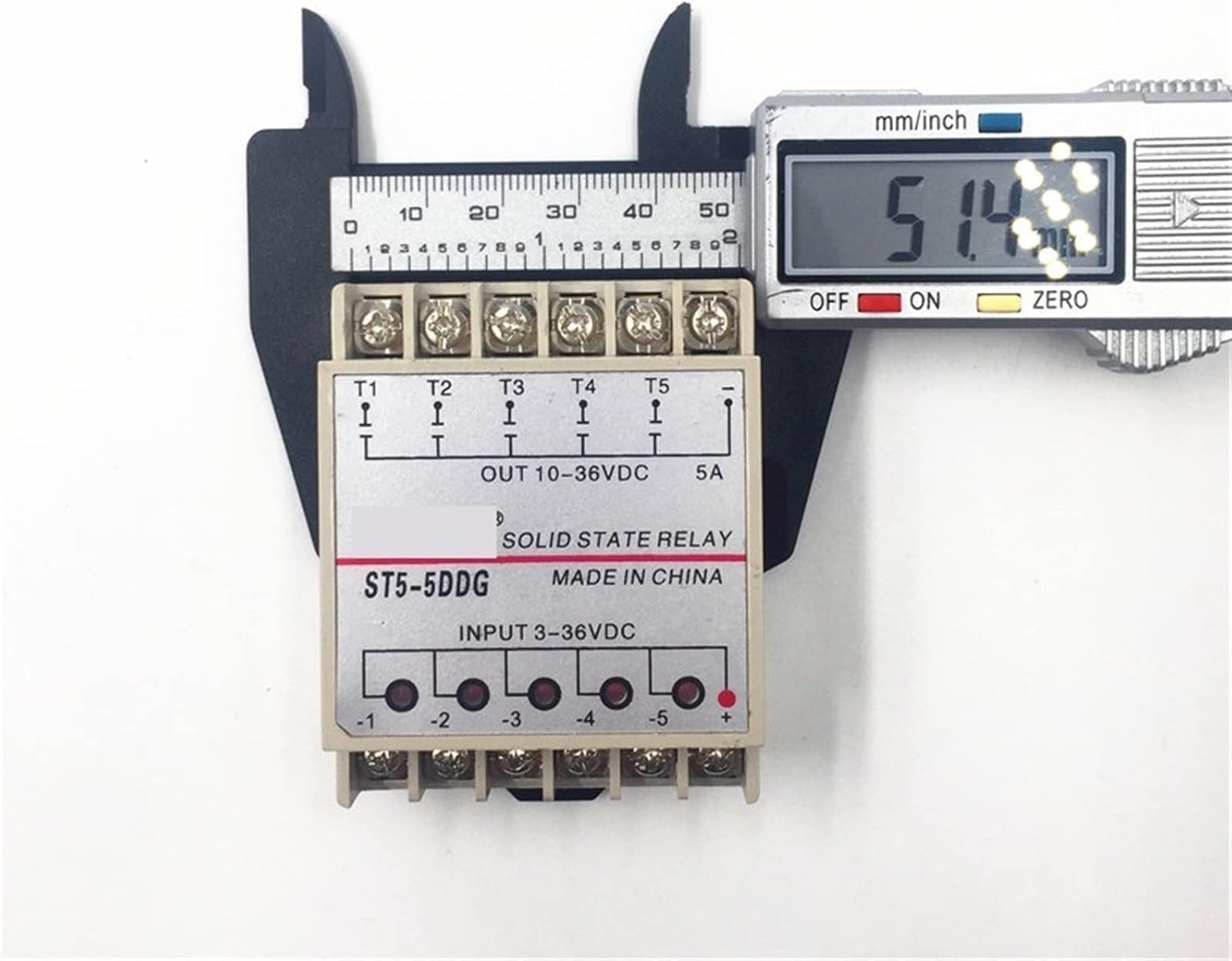

1Pcs 5DDG 5 Channel SSR Quintuplicate Five Input 3~32VDC Output 5~36VDC Single Phase DC Solid State Relay PLC Module

relaySolid State Relays1pc 5DDG 5 Channel Din rail SSR Quintuplicate Five Input 3~32VDC Output 5~36VDC Single Phase DC Solid State Relay PLC Module Din Rail Solide state relayInput 3~32V DCOutput 5~36VDCquintuplicate outputRate current 5AType Standard type Isolation type Model ST5-5DD ST5-5DDG PN5-10DA Rated load current 5A 5A 10A Input Data Input voltage 24VDC 3~32VDC Min. ON/OFF Voltage <;;1.0V <;;1.0V Trigger current 7.5mA/12V 4mA/12V Output Data Operating Voltage 24VDC 5~36VDC 24~380VAC Voltage Drop 1.6V/25°c Leakage Current 0.8mA 0.7mA Response Time <;; 1ms <;;10ms, OFF10ms Dielectric Strength Over 2.5KVAC/1min. Isolation Strength Over 50M/500VDC Operation Temperature _20°c ~ +80°c Housing Material Intensive ABS Weight 65g 85g Installation Din rail installation This product is fully isolation design, the input and output control completely isolated matter, isolation of 3500V. Simply means that when the output load failures do not appear channeling channel controller (PLC) , without damaging the control circuit, a controller (PLC) can work properly.'
