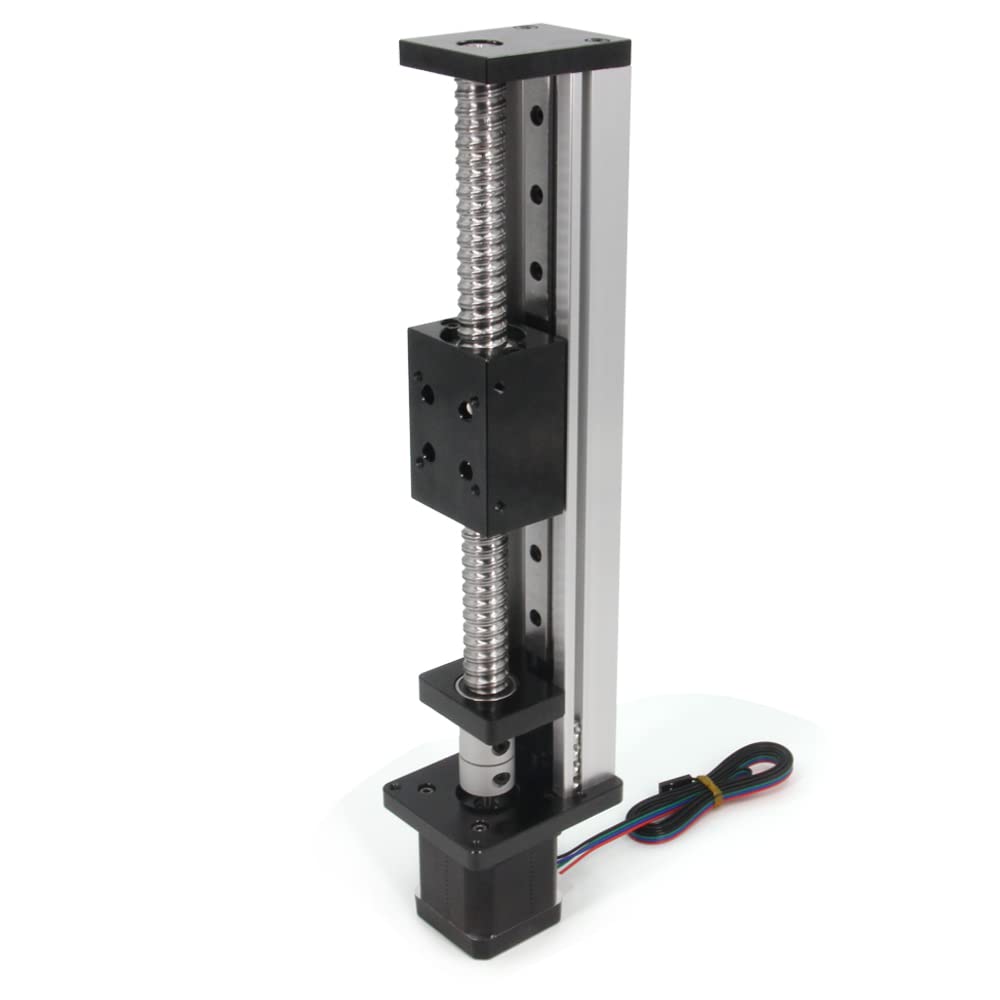

150mm Effective Stroke Length Linear Rail Guide with Square Linear Rails Ballscrew SFU1605 with Nema 17 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator (Size:150mm)
4.2 (33 items)
Limited Time Sale$46.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211200571 | Release Date | 2026/04/04 | List Price | $30.80 | Model Number | 211200571 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Name: 150mm Effective Stroke Length Linear Rail Guide with Square Linear Rails Ballscrew SFU1605 with Nema 17 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator Tips: Make sure you have the drive and controller, no drive and controller stepper motor will not work Linear Stage Actuator Parameter: Effective Travel Length: 150mm Total length: 315mm Type: linear system moulde Ballscrew Type: SFU1605; Diameter: 16mm, Pitch of Screw: 5mm Level ballscrew: C7 Weight:about 1590g Stepper motor Parameter: Step angle: 1.8 degree Motor voltage: DC 24V Motor flange size: 42mm Motor length: 47mm Holding torque: 1.2N.cm Current: 1.5A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Widely used for DIY CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement. Package Included: 1Kit Linear Stage Actuator with NEMA17 Stepper Motor 1pcs Stepper Motor Cable Please Note: Any question or problem, do not hesitate to contact us, we will reply you within 24 hours As Manual measurement, please allow slight errors on size The color may exist slight difference due to different screen displays
- The Linear Guide Material: made of high quality metal, surface oxidation treatment, high hardness and excellent performance.
- Effective Travel: 150mm Effective Travel, Total length: 315mm, Ballscrew Type: SFU1605 ( diameter: 16mm, pitch of screw: 5mm ) Lead: 5mm (the lead screw can move 5mm in one turn), 4pcs M4 threaded hole on the moving block to fix the workpiece.
- High Precision: Linear Guide Repeat positioning accuracy of ±0.03mm, linear slide rail with high precision smooth movement.
- Load: Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg; Speed: 0-50mm/s
- Widely used for DIY CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.
| Item Weight | 3.7 pounds |
|---|---|
| Manufacturer | Yeebyee |
| Item model number | YE020-2 |
| Package Dimensions | 13.39 x 4.72 x 2.76 inches |
