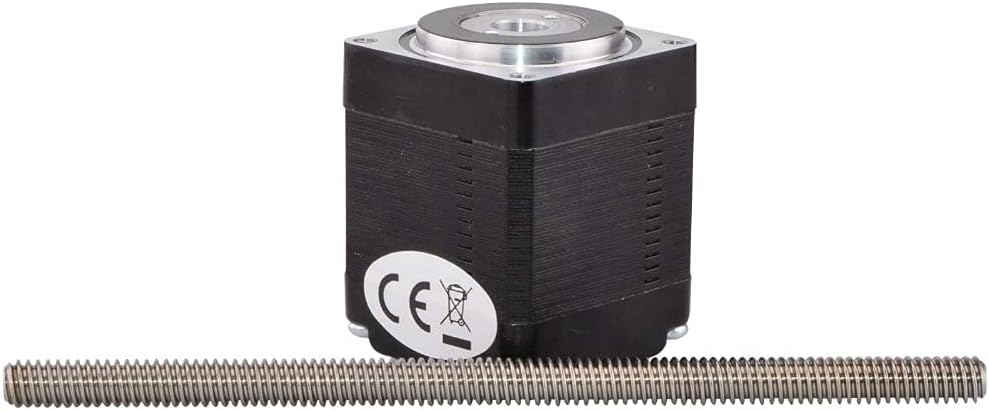

11 Non-captive Linear Stepper Motor 4-lead 34mm Stack 0.75A Lead 2mm/0.07874" Lead Screw Length 100mm - (Style: A)
4.9 (43 items)
Limited Time Sale$54.35 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211204248 | Release Date | 2026/04/04 | List Price | $36.24 | Model Number | 211204248 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This model is economy linear stepper motor which named 11 non captive linear actuator, it was composed of 34mm 1.8 degree 0.75A 11 stepper motor and 100mm length Tr5x2 linear screw.Electrical Specifications:Manufacturer Part Number: 11N13S0754AA-100RSMotor Type: Non Captive Linear StepperStep Angle: 1.8 degHolding Torque: 8.0Ncm(11.1oz.in)Rated Current/phase: 0.75APhase Resistance: 3.2ohmsVoltage: 2.4VInductance: 2.0mH ± 20%(1KHz)Physical Specifications:Frame Size: 28 x 28mmBody Length: 34mmLead Screw Length: 100mm（3.937"）Lead Screw Diameter: Φ5mm（0.1969"）Lead /Step: 0.01mm(0.0003937" )Lead/Revolution: 2mm（0.0787"）Number of Leads: 4Lead Length: 300mmWeight : 150gConnectionItem specifics:Current / phase: 0.75AHolding torque: 8.0Ncm(11.1oz.in)Step angle(degrees): 1.8 degPhase: 2Model number: 11N13S0754AA-100RSType: HYBRIDCertification: ce,ROHSOrigin: Mainland China
- Style: A
- Current / phase: 0.75A
- Holding torque: 8.0Ncm(11.1oz.in)
- Step angle(degrees): 1.8 deg
- Phase: 2
| Brand Name | Generic |
|---|---|
| Unit Count | 1.0 Count |
| Manufacturer | DAVITU |
